PolyMax™ is a family of advanced 3D printing filaments produced with Polymaker’s Nano-reinforcement technology, to deliver exceptional mechanical properties and printing quality.
PolyMax™ PC is an engineered PC filament combining excellent strength, toughness, heat resistance and printing quality. It is the ideal choice for a wide range of engineering applications.

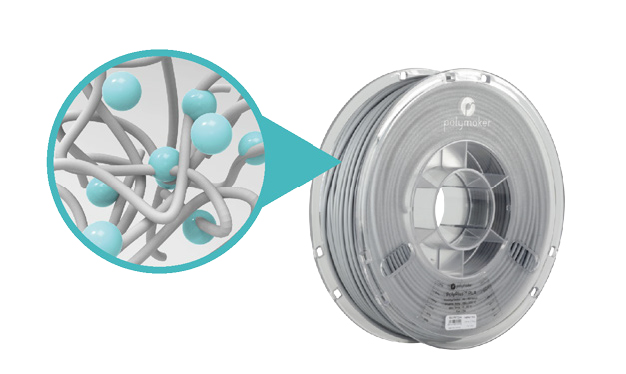

PolyMax™ PC features Polymaker's Nano-reinforcement technology
Nano-reinforcement technology is applied to produce filaments with excellent mechanical properties and printing quality. It dramatically improves the toughness of the material by increasing its impact resistance.
Excellent dimensional stability and near-zero warpage
Properties
- High impact strength
- Extremely durable
- Heat resistant
- Relatively light weight
- Bendable without breaking
- Very hygroscopic
- Non-conductive
- Naturally transparent with excellent light transmittance
Manufacturer print parameters recommendation
- Nozzle temperature: 250 – 270˚C
- Bed temperature: 90 – 105 ˚C
- Bed surface: BuildTak, Glass, PEI
- Bed adhesive: Magigoo PC
- Active cooling fan: off
- Print speed: 30 - 50 mm/s
- Retraction distance: 1 mm
- Retraction speed: 20 mm/s
- Threshold overhang angle: 50 °
When printing with PolyMax™ PC it is recommended to use an enclosure. For large part it is recommended to use a heated chamber.
It is recommended to anneal the printed part right after the printing process to release the residual internal stress.
Annealing settings: 90˚C for 6h
Technical data
- Material: Polycarbonate
- Diameter: 1.75 mm
- Diameter accuracy +/- 0.05 mm (99.9% +/- 0.04 mm, 99% +/- 0.03 mm, 97% +/- 0.02 mm)
- Weight: 750g
- Vicat softening temperature: 117°C
- Glass Transition Temperature: 113°C
- Drying settings: 75°C for 6h
Color | |
---|---|
Manufacturer | Polymaker |
Filament weight | 0,75 Kg |
Filament material | PC |
Compatible with AMS | Yes |
Compatible with AMS Lite | Yes |
Filament diameter | 1,75 mm |
Heated bed temperature | 90 - 105 °C |
Hotend temperature | 250 - 270 °C |
Diameter tolerance | ± 0,05 mm |
Spool diameter | 200 mm |
Spool width | 45 mm |
Spool hole diameter | 55 mm |
Softening temperature | 116.9 °C |
Closed chamber | Required |
Difficulty of printing | Expert |
Drying conditions | 75 °C / 6h |
Glass transition temperature | 113 °C |
Heat Distortion Temp | 114.1 °C |
