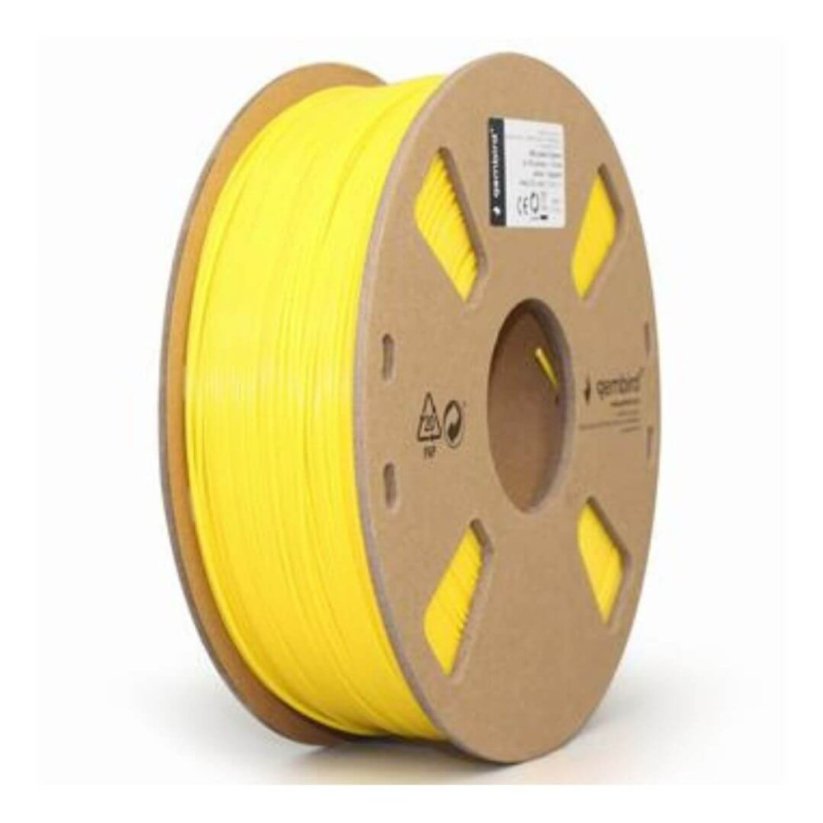

Gembird ABS yellow 1 kg

Gembird ABS Filament 1.75mm

ABS filament from Gembird is a classic thermoplastic designed for FDM 3D printing. This material offers good mechanical resistance and thermal stability, making it ideal for printing functional parts and prototypes. With a standard spool size of 1 kg, it provides sufficient material for medium-sized projects.

Material Properties

Mechanical Properties

• High impact strength
• Good abrasion resistance
• Suitable for mechanically stressed parts
• Post-processing options (sanding, gluing)

Thermal Characteristics

• Temperature resistance up to 98°C
• Glass transition temperature 105°C
• Lower thermal expansion compared to PLA

Recommended Printing Parameters

Basic Settings

• Nozzle temperature: 230-250°C
• Bed temperature: 90-110°C
• Print speed: 30-60 mm/s
• Layer height: 0.1-0.3 mm
• Cooling: 0-30%

Printing Environment Requirements

• Heated bed necessary
• Enclosed chamber recommended
• Good ventilation of the printing area

Technical Specifications

• Filament diameter: 1.75 mm ±0.05 mm
• Spool weight: 1 kg
• Filament length: approximately 400 m
• Material density: 1.04 g/cm³

Suitable Applications

• Functional prototypes
• Mechanical parts
• Automotive components
• Home appliances
• Technical models

Storage and Maintenance

To maintain optimal material properties:

• Store in a dry place at room temperature
• Protect from direct sunlight
• Keep in a resealable container with a moisture absorber
• Recommended to dry before printing at 80°C for 4-6 hours

Before printing, we recommend drying the ABS filament to minimise moisture, which can negatively affect print quality. You can use PolyDryer or PolyDryer Box for drying, which effectively remove moisture and prepare the filament for optimal printing conditions.

For long-term storage, it is advisable to keep the filament in a resealable container with a moisture absorber such as silica gel. These methods complement each other and ensure that your filament remains dry and ready for quality printing.

Safety Recommendations

• Ensure good ventilation of the printing area
• Use protective equipment during post-processing
• Not suitable for printing objects intended for food contact
• Fumes are produced during printing - air filtration recommended

ABS filament from Gembird is a reliable choice for demanding 3D printing projects requiring durability and thermal stability. Thanks to its properties and wide range of applications, this material is ideal for users looking for a versatile filament for printing functional and sturdy parts.
