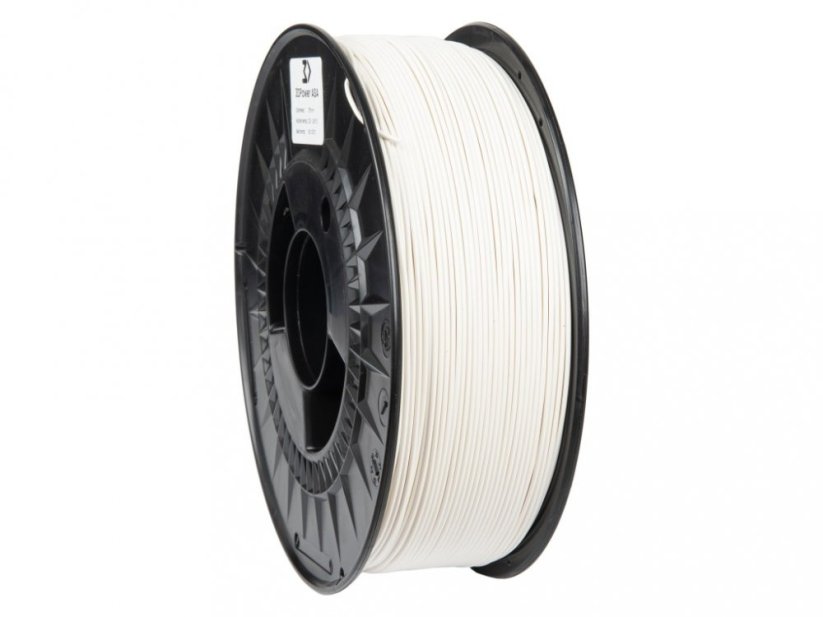

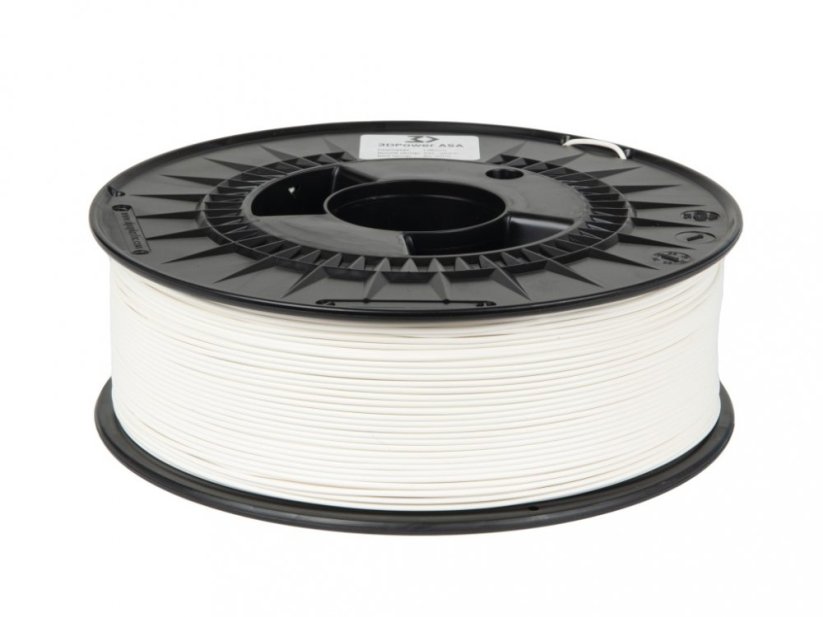

3DPower ASA white
3DPower ASA white
3DPower ASA filament is ideal choice for printing models, that are constantly exposed to external weather conditions.
ASA filament (acrylonitrile styrene-acrylonitrile) from 3DPower is characterized by a very good price-to-quality ratio.
Net weight 1 kg
Above-standard accuracy ±0.03 mm
Enough pigment for rich colors
Excellent value for money More
Manufacturer: 3DPowerProduct code: 702 Shipping and Payment
3DPower ASA filament is ideal choice for printing models, that are constantly exposed to external weather conditions.
ASA filament (acrylonitrile styrene-acrylonitrile) from 3DPower is characterized by a very good price-to-quality ratio.
Net weight 1 kg
Above-standard accuracy ±0.03 mm
Enough pigment for rich colors
Excellent value for money More
Manufacturer: 3DPowerProduct code: 702 Shipping and Payment
3DPower ASA - resistant to all conditions!
The 3DPower ASA filament is resistant to UV radiation. High mechanical strength and high temperature resistance (up to approx. 90 ° C) make 3DPower ASA an unrivalled material for printing elements constantly exposed to weather conditions.
In addition, the 3DPower ASA filament, compared to ABS, apart from the aforementioned resistance to weather conditions, is characterized by low shrinkage. The durability of 3DPower ASA filament prints is similar to those made of ABS, but the printing process itself is easier. What's more, 3DPower ASA does not require a closed chamber when making small and medium-sized prints.
Details made of 3DPower ASA filament can be machined well, can be sanded and painted, and holes can also be drilled in them.
Filament can be used with most FDM 3D printers. 3DPower ASA is an excellent material for printing elements exposed to changing external conditions, which speaks for the use of this filament for the production of mechanical structures, and even everyday objects that are taken to work in the field.
Why the 3DPower ASA filament?
- Resistance to the influence of UV radiation
- High durability
- Higher chemical resistance than ABS
- High interlayer adhesion
- High mechanical strength
- Relatively low processing shrinkage
- Resistance to the influence of weather conditions
- Easy machining
Filament technical data
- Material: acrylonitrile styrene-acrylonitrile (ASA)
- Diameter: 1.75mm
- Dimensional tolerance: ± 0.03mm
- Density: 1.07 g / cm³
- Net weight: 1kg
- Gross weight: 1.4kg
- Heat distortion temperature (4.5Mpa): 86 °C
- Heat distortion temperature (1.8Mpa): 92 °C
- Vicat softening temperature: 93 °C
Spool dimensions
- Outer diameter: 200mm
- Mounting hole diameter: 52mm
- Width: 68mm
Recommended print settings by manufacturer
The following parameters are only suggested print settings for this material. To ensure the best print quality, it is necessary to choose the appropriate settings for a specific printer and printing conditions.
- Nozzle Temperature: 230 - 260°C
- Bed Temperature: 80 - 100°C
- Printing Speed: 40 - 100 mm/s
- Fan: 0 - 40%
- Chamber: suggested
To ensure adequate adhesion between the layers and reduce shrinkage, we recommend the use of an adhesive such as Dimafix, Magigoo or 3DLac.
Package
Each spool is packed in a vacuum bag with a moisture absorber.
Color | |
---|---|
Manufacturer | 3DPower |
Filament weight | 1 Kg |
Filament material | ASA |
Compatible with AMS Lite | Yes |
Country of origin | Poland |
Filament diameter | 1,75 mm |
Heated bed temperature | 80 - 100 °C |
Hotend temperature | 230 - 260 °C |
Diameter tolerance | ± 0,03 mm |
Spool diameter | 200 mm |
Material surface | Light gloss |
Spool width | 68 mm |
Spool hole diameter | 52 mm |
Softening temperature | 93 °C |
Closed chamber | Recommended |
Difficulty of printing | Advanced |
Heat Distortion Temp | 92 °C |
