Phaetus Dragonfly BMS Hotend
Phaetus Dragonfly BMS Hotend
Phaetus Dragonfly is an all-metal hotend that will mean a qualitative shift in printing and an end to hotend problems for owners of conventional printers. Most of the key parts are made of copper alloy to ensure high thermal conductivity. Heatbreak with its unique tapered shape guarantees quality separation of the heating block and stands out for its internal smoothness.
With this hotend you get easy access to print higher materials. In fact, the Dragonfly allows heating up to 500°C.
For most conventional Creality 3D printers, this is a direct replacement.
Superior thermal isolation of heat break
Delicate appearance modeling
Taperde design - efficient heat dissipation
High temperature resistance More
Manufacturer: PhaetusProduct code: 226 Shipping and Payment
Phaetus Dragonfly is an all-metal hotend that will mean a qualitative shift in printing and an end to hotend problems for owners of conventional printers. Most of the key parts are made of copper alloy to ensure high thermal conductivity. Heatbreak with its unique tapered shape guarantees quality separation of the heating block and stands out for its internal smoothness.
With this hotend you get easy access to print higher materials. In fact, the Dragonfly allows heating up to 500°C.
For most conventional Creality 3D printers, this is a direct replacement.
Superior thermal isolation of heat break
Delicate appearance modeling
Taperde design - efficient heat dissipation
High temperature resistance More
Manufacturer: PhaetusProduct code: 226 Shipping and Payment
Highlights and innovation of Dragonfly hotend

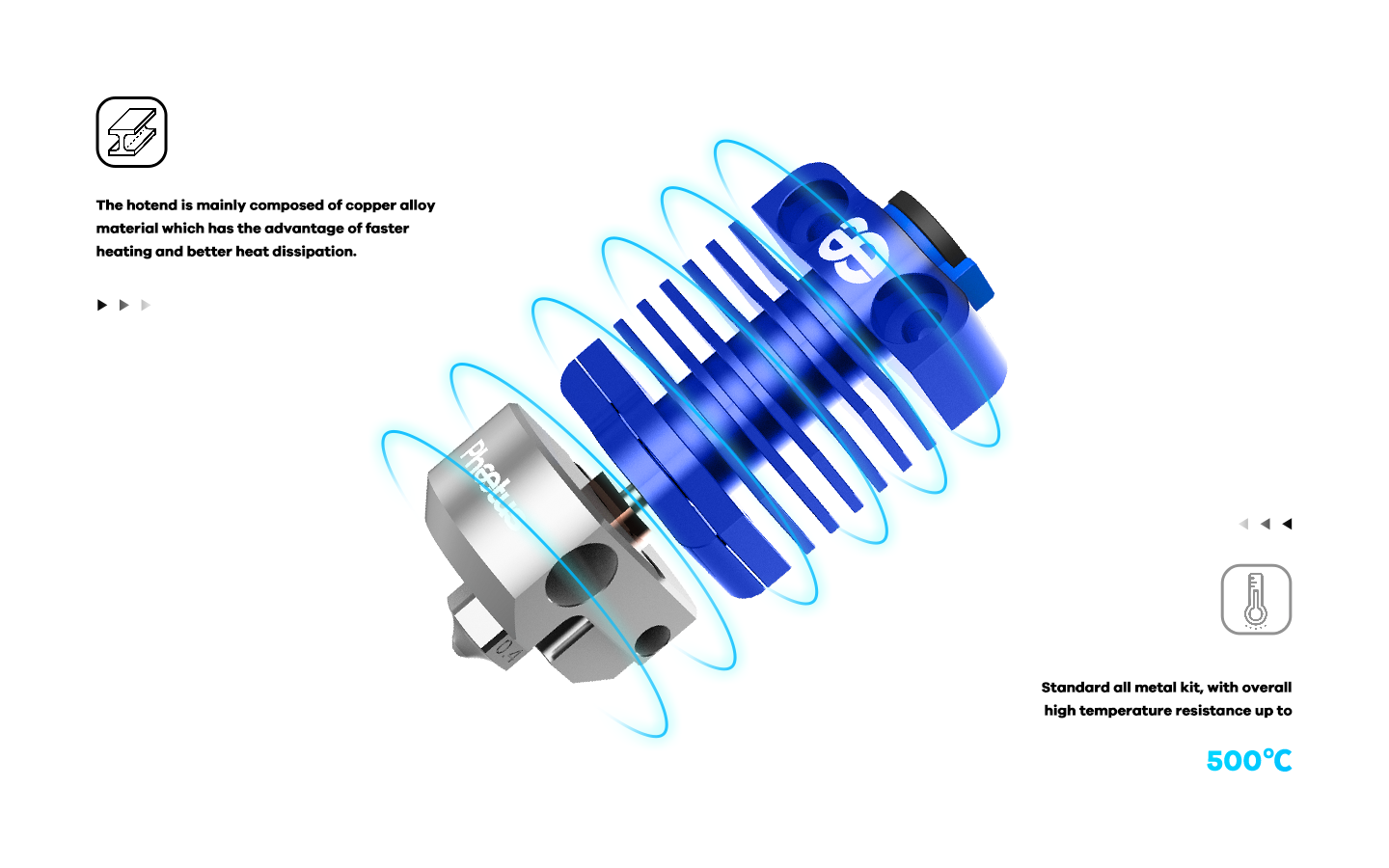

- The hotend’s core parts are mainly composed of copper alloy, which has the advantage of better heat conduction.
- Overall high temperature resistance up to 500℃.

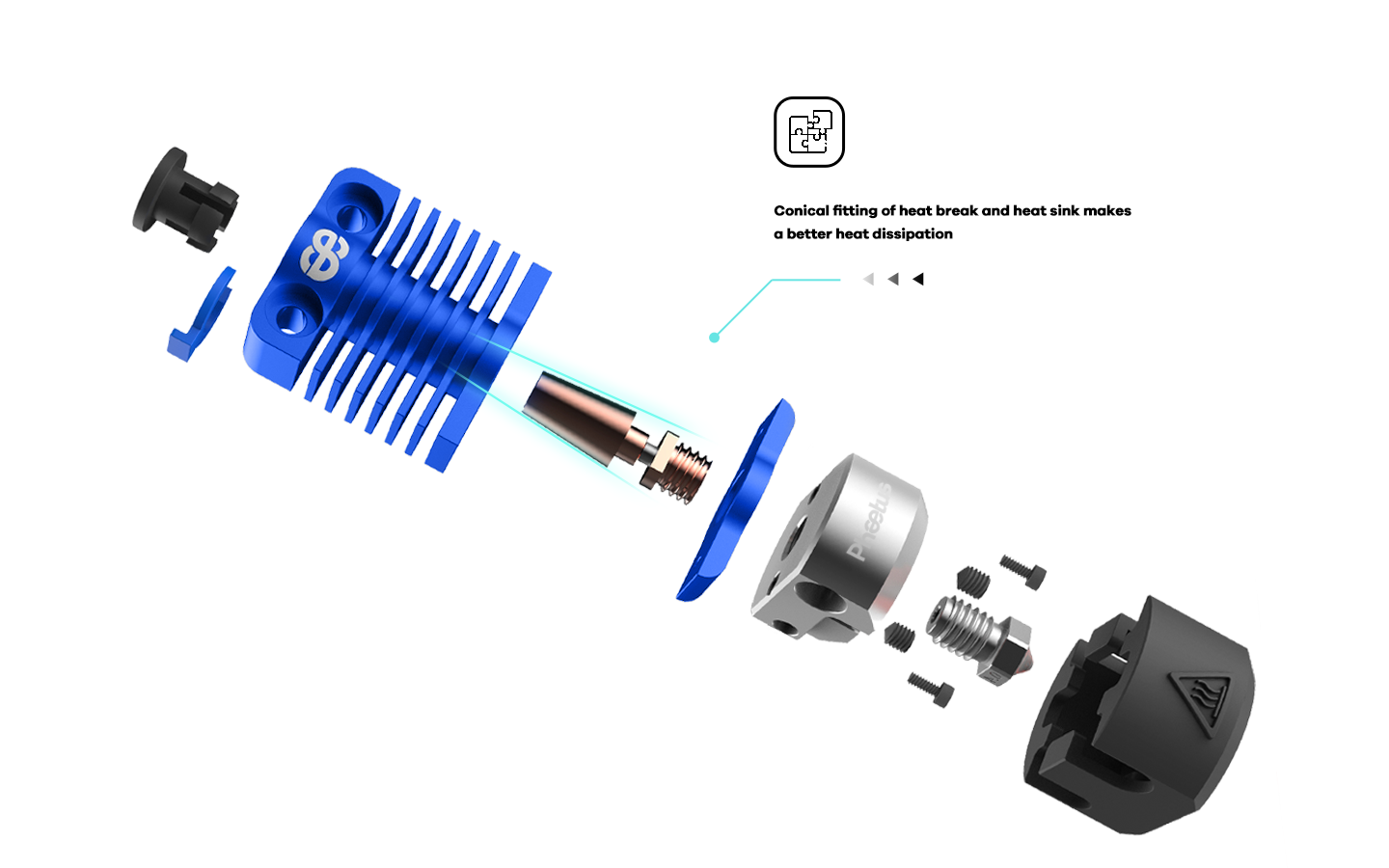

- Heat sink and heat break adopt conical surface fitting design.
- Close fitting increase heat dissipation contact area.
- Low roughness of heat break.

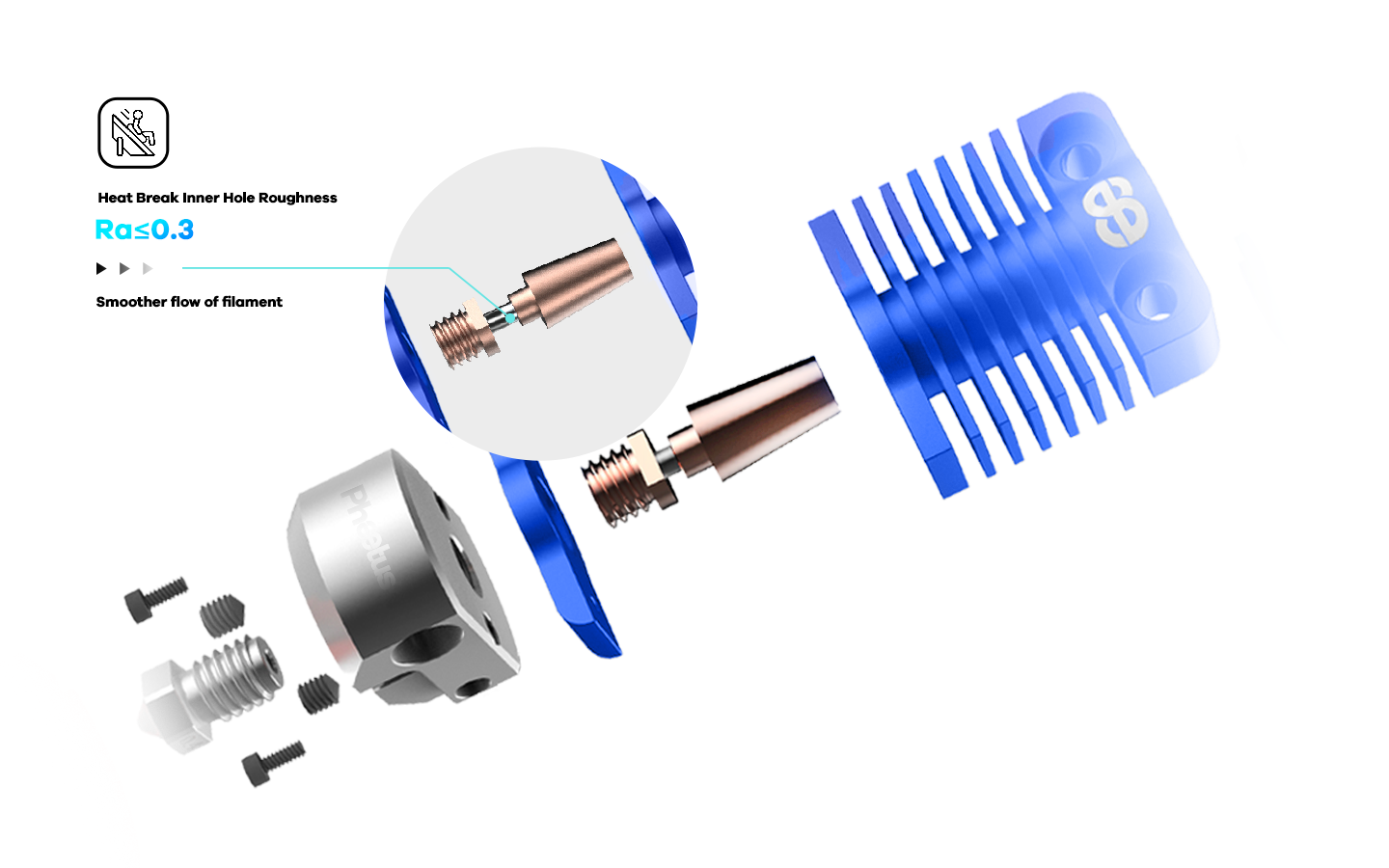

- The inner hole roughness of the heat break ≤Ra0.3, which allow a smoother movement of filament.

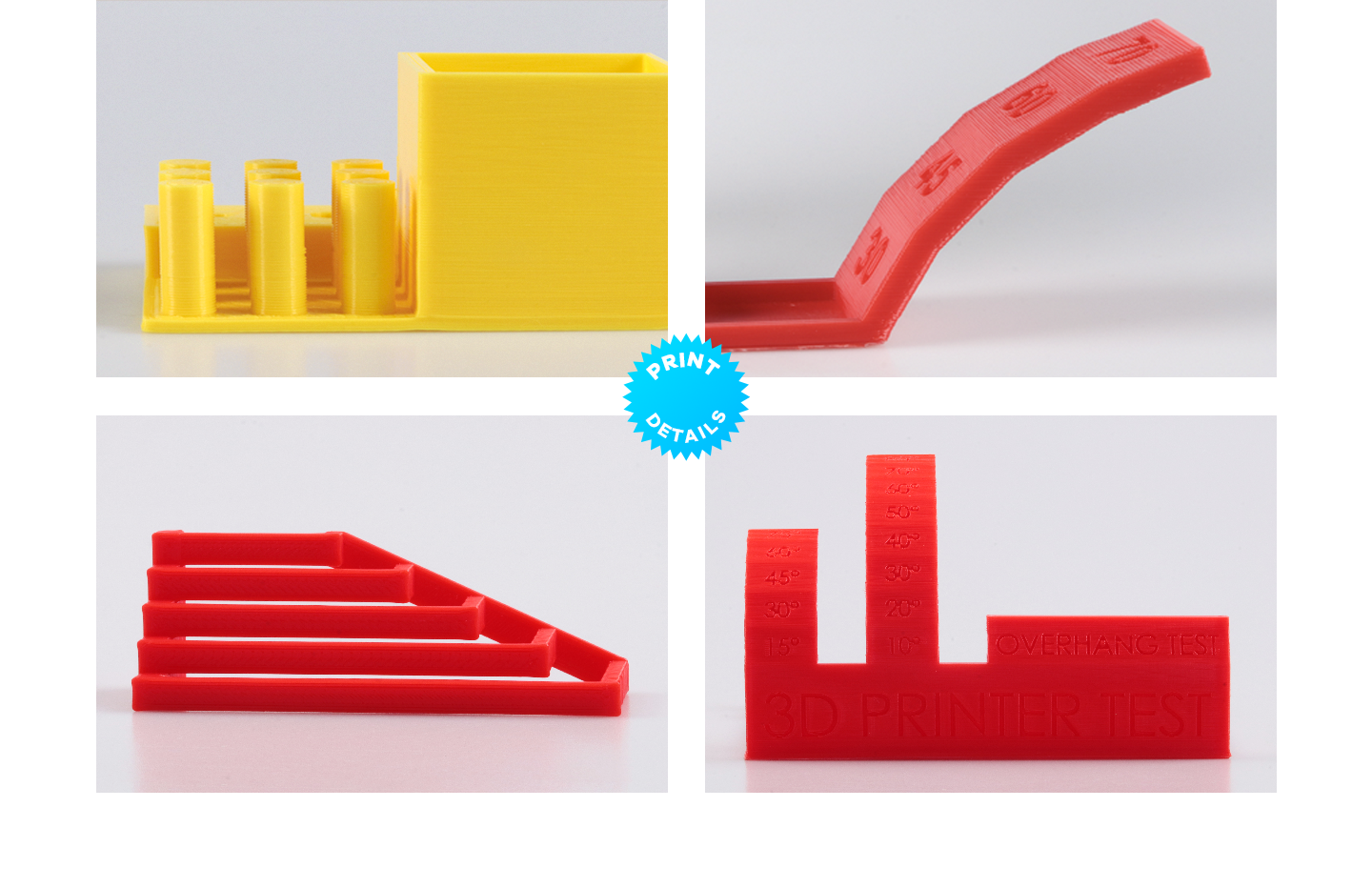

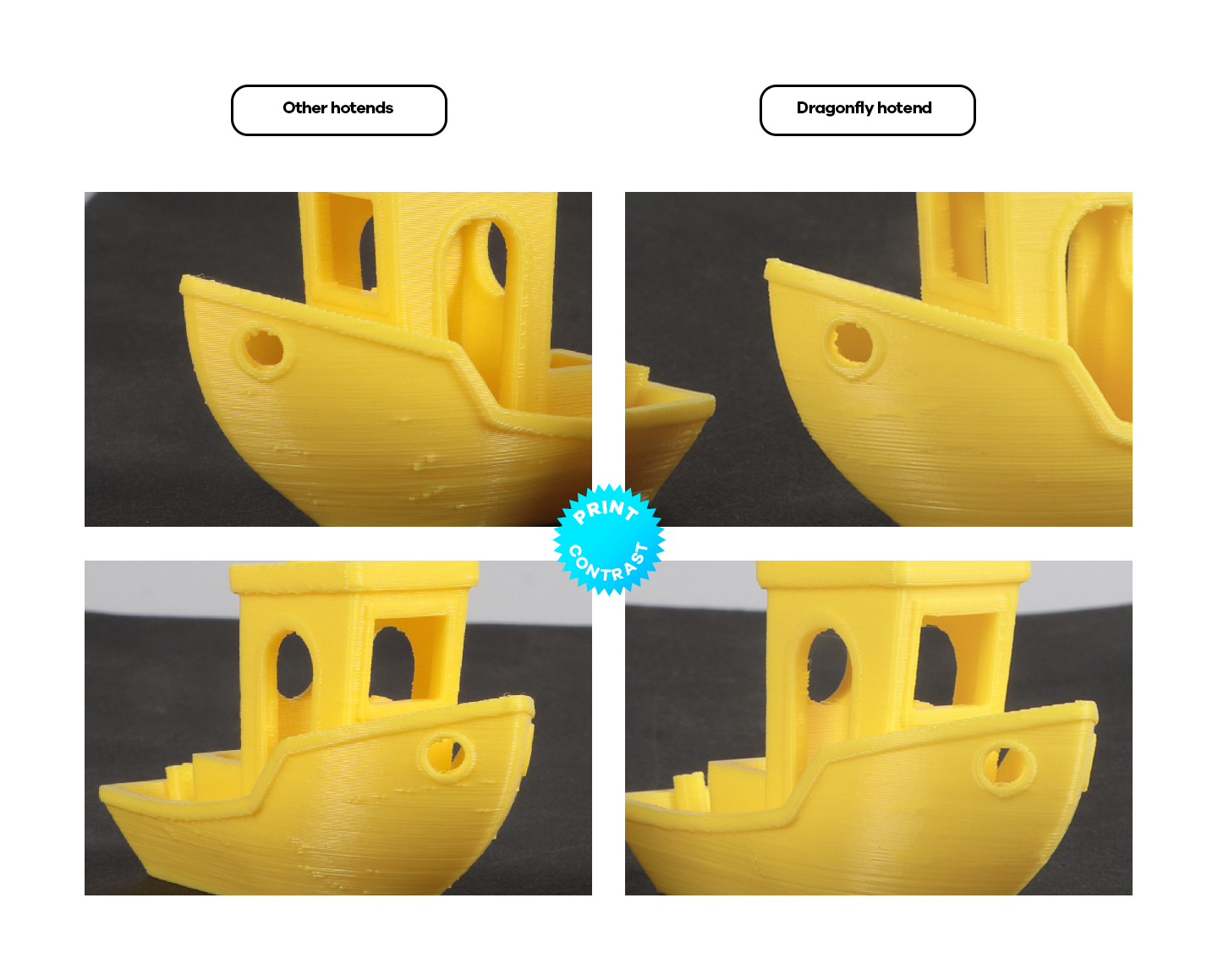

- High printing precision, no filament plugging.
Compatible 3D printers
A list of some compatible printers with the possibility of direct replacement. Customized hotend solutions can be found for other printers.
- CR-10
- CR-10S series
- CR-10 MINI
- CR-20
- CR-20 Pro Ender 2
- Ender 3
- Ender 3 V2
- Ender 3 Pro
- Ender 5
- Ender 5 Plus
Applicable Materials

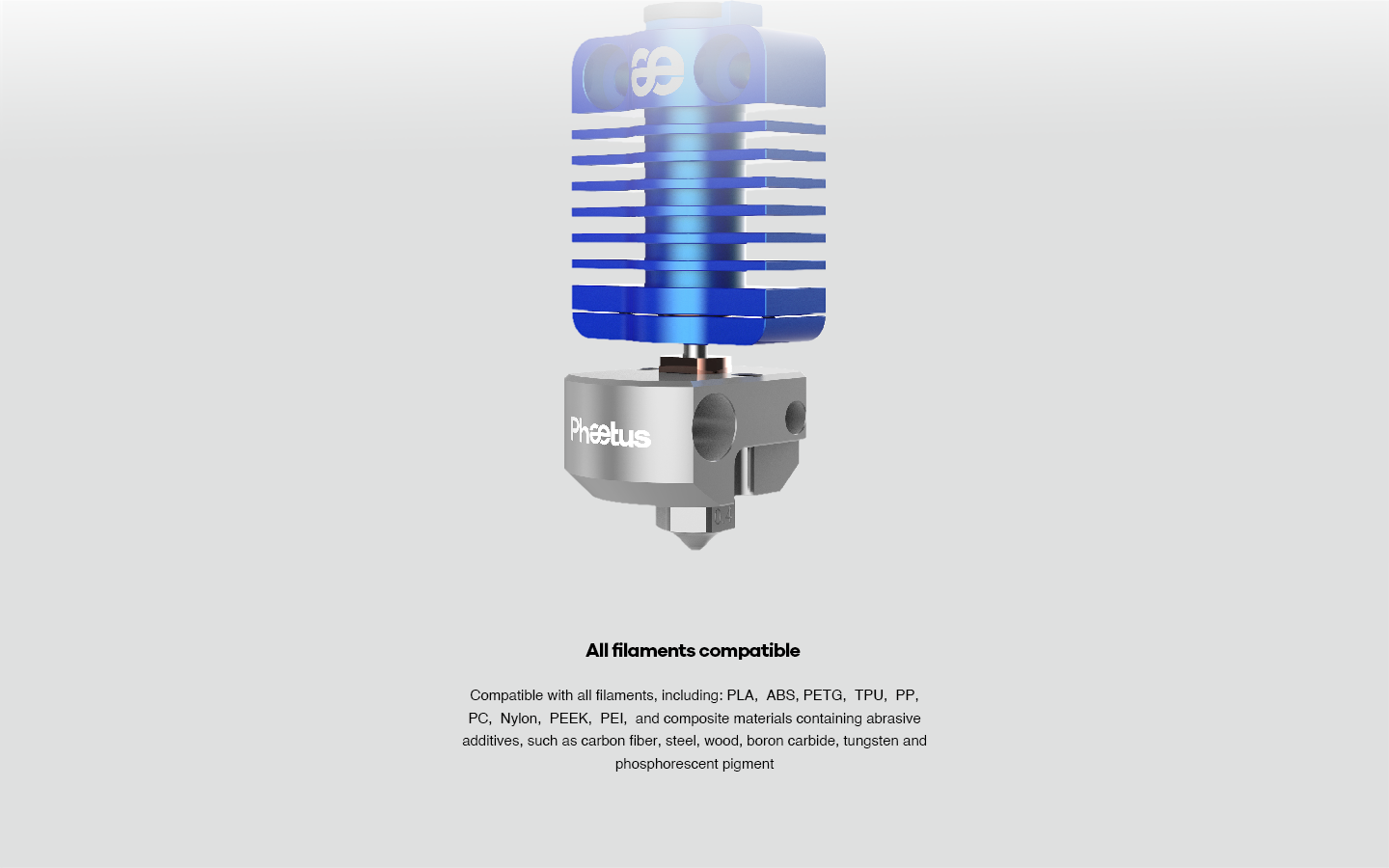

Compatible with all filaments, including: PLA, ABS, PETG, TPU, PP, PC, Nylon, PEEK, PEI, and composite materials containing abrasive additives, such as carbon fiber, steel, wood, boron carbide, tungsten and phosphorescent pigment
Properties
- Nozzle: Plated copper 0.4/1.75mm
- Size: 100 x 60 x 40 mm
- Appearance Color: Blue / Black
- Net Weight: 95 g
- Material Processes:
- High strength and high conductivity plated copper
- Hexahedron hardened steel
- High quality brass alloy
- Low density high strength aluminum alloy
Realistic comparison of the flow rates of the most common hotends
- ~10-12mm3/s for V6
- ~14-16mm3/s for SF Dragon, DragonFly and a little bit higher on a SF Mosquito
- ~20-30mm3/s for HF Dragon or Mosquito
- ~30-40mm3/s for Volcano or Nova
- ~80-90mm3/s for Mosquito Magnum+
- ~110mm3/s for SuperVolcano

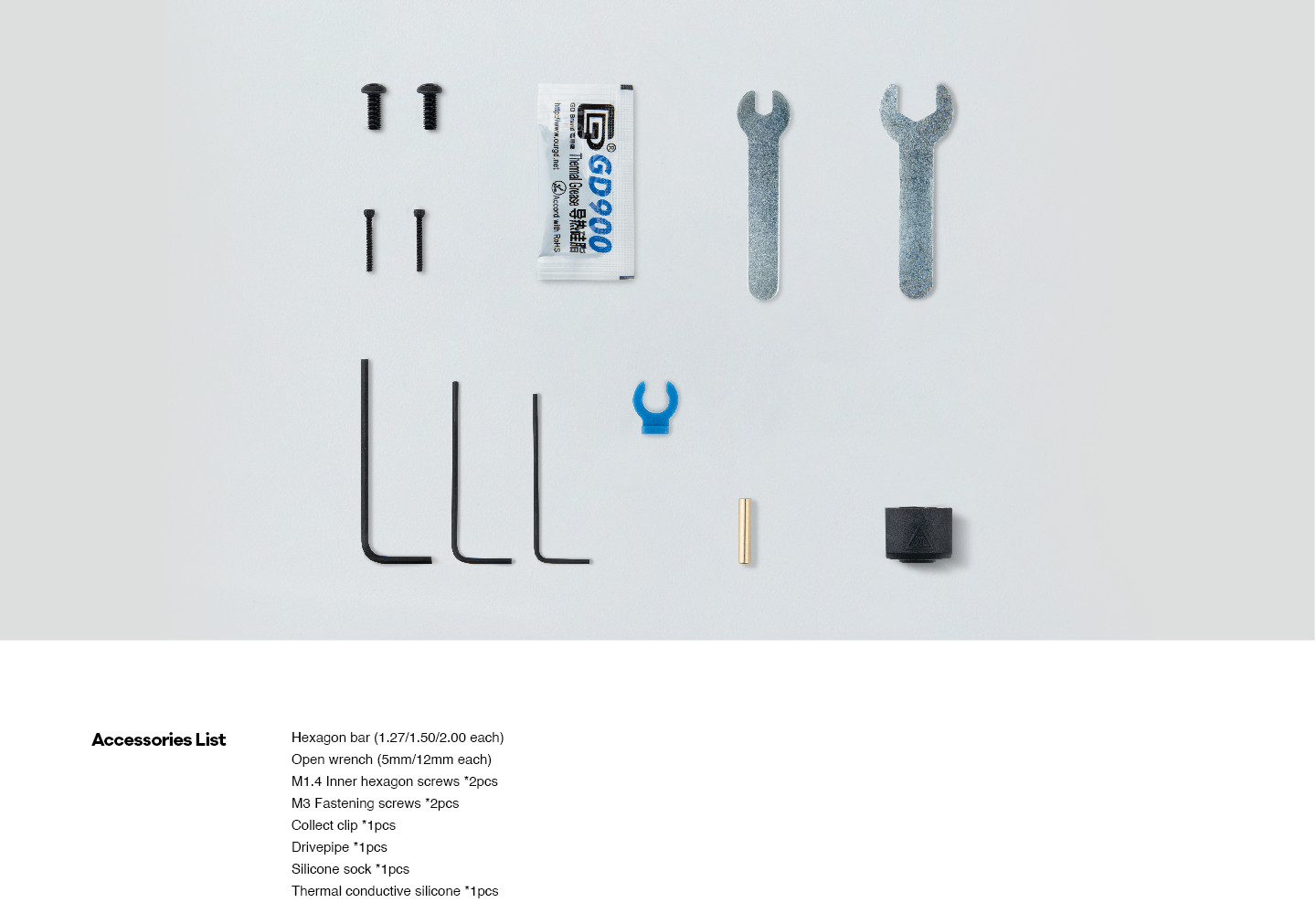

Accessories List
- Hexagon bar (1.27/1.50/2.00)
- Open wrench (5mm/12mm)
- M1.4 Inner hexagon screws 2pcs
- M3 Fastening screws 2pcs
- Collect clip 1pcs
- Drivepipe 1pcs
- Silicone sock 1pcs
- Thermal conductive silicone 1pcs
| Color | Black|Blue |
|---|---|
| Manufacturer | Phaetus |
| Filament material | Nylon (PA)|PEEK|PEI|ASA|PLA|ABS|PET-G|TPU|PP|PC |
| Filament diameter | 1,75 mm |
| Nozzle diameter | 0,4 mm |
| Hotend type | All-metal |
| Dimensions | 100 x 60 x 40 mm |
| Material | Plated copper |
| Weight | 95 g |
| Hotend flow | Standard |
| Heating element | Standard |
| Compatible models | Creality CR-10|Řada Creality Ender 3|Creality Ender 5 |
