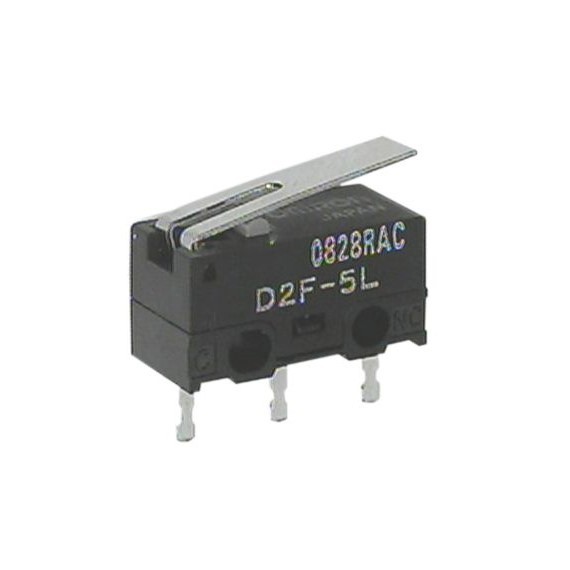

Microswitch Omron D2F-5L
Microswitch Omron D2F-5L
High quality, accurate and durable microswitch from Omron with proven application in 3D printer construction with maximum current load up to 5A.
Used as a limit switch for all Voron 3D printer models. However, it is also recommended for other 3D printers where maximum long-term reliability and accuracy are required. More
Manufacturer: OmronProduct code: 453 Shipping and Payment
High quality, accurate and durable microswitch from Omron with proven application in 3D printer construction with maximum current load up to 5A.
Used as a limit switch for all Voron 3D printer models. However, it is also recommended for other 3D printers where maximum long-term reliability and accuracy are required. More
Manufacturer: OmronProduct code: 453 Shipping and Payment
Features
- Incorporating a snapping mechanism made with two highly precise split springs that ensures long durability.
- Using insertion molded terminals that prevents flux penetration.
- Applications with maximum current loads up to 5A.
Parameters
- Series: D2F

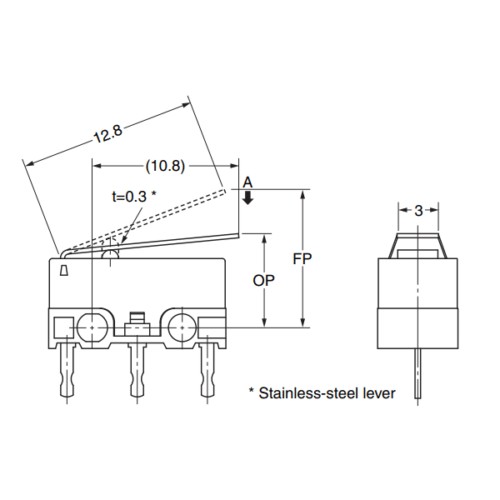

- Dimensions (W/H/D): 12.8 x 7.5 x 5.8 mm
- Category: switch, limit switch, microswitch
- Current Load: 5A (AC)
- Rated voltage: 250V (AC)
- Mounting type: Through-hole
- Protection: IP40
- Operating temperature: -40 °C ~ 85 °C
- Electrical Life: 10000
- Mechanical Life: 1000000
- Contact Material: Silver Alloy
| Manufacturer | Omron |
|---|---|
| Recommended by Voron Community | Yes |
| Voron | V2.4|V0|Trident|Switchwire |
| Dimensions | 12,8 x 7,5 x 5,8 mm |
