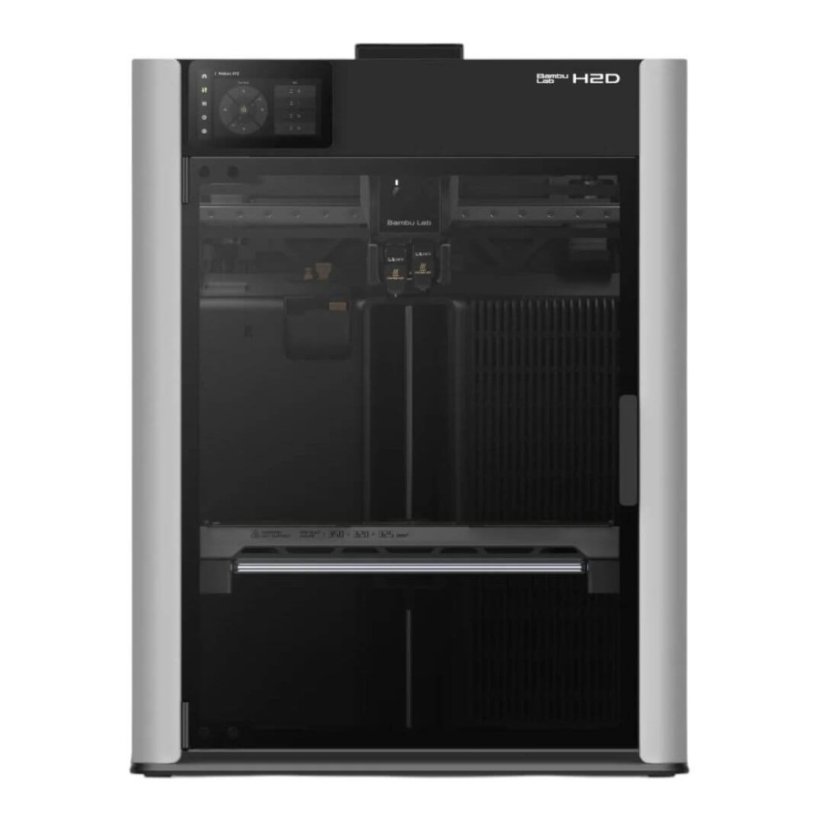

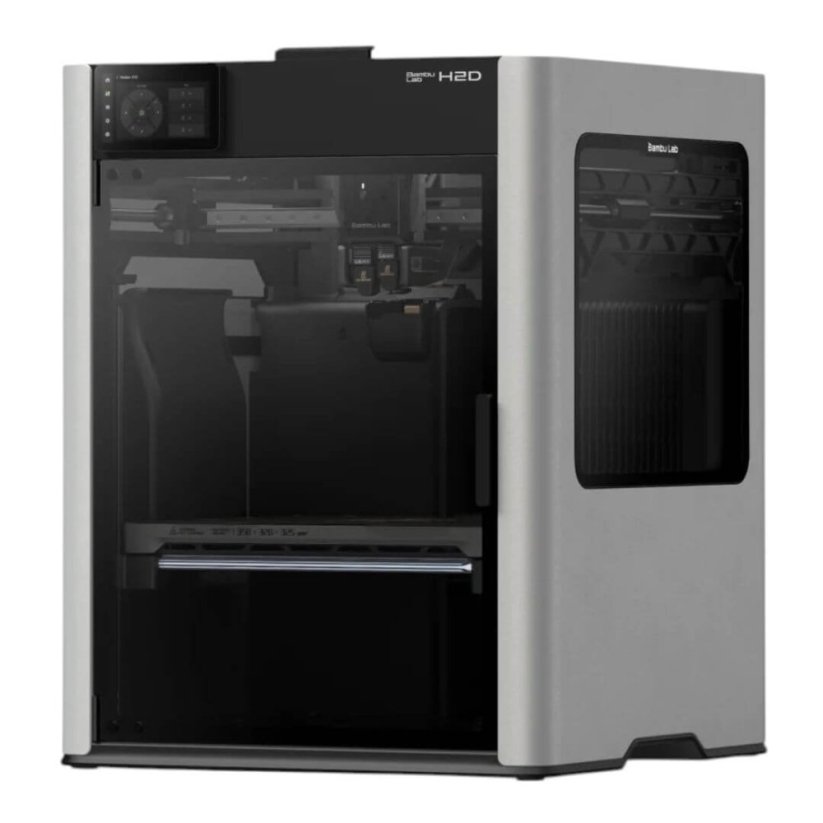

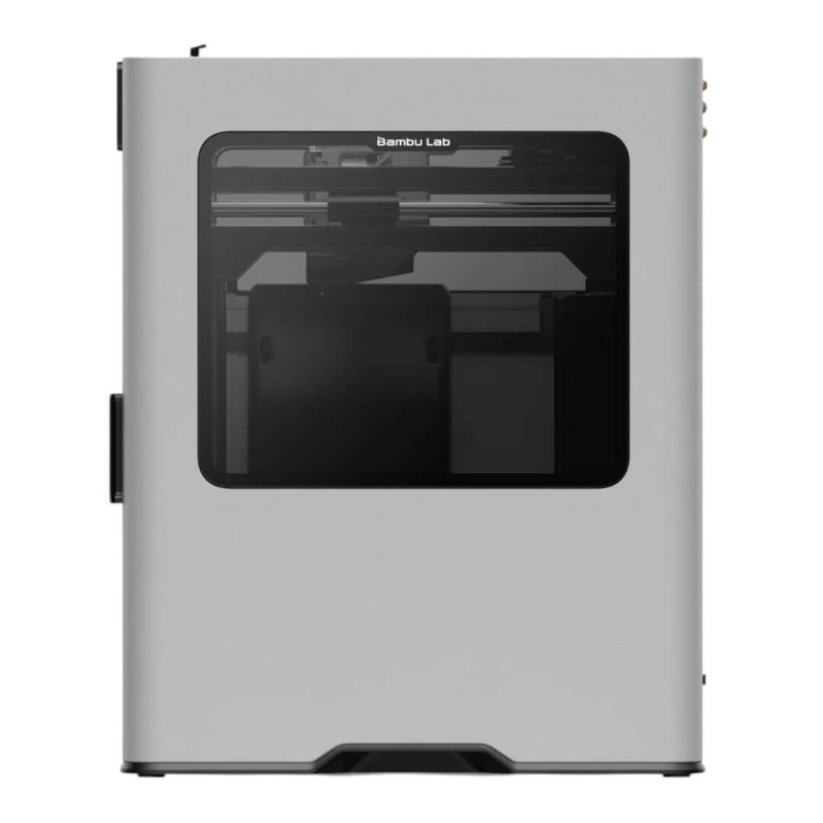

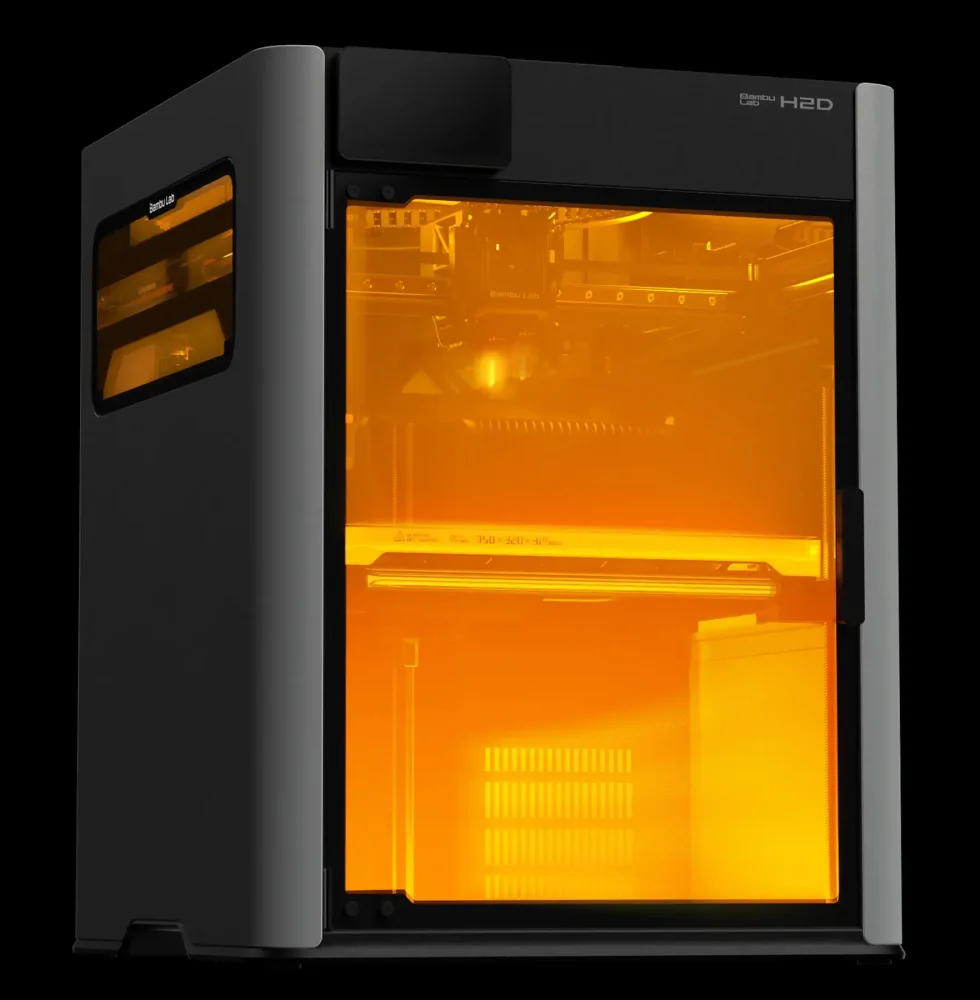

Bambu Lab H2D: Professional 3D Printer

The Bambu Lab H2D represents the new generation of 3D printers with a dual nozzle system and heated chamber for both home and professional use.

Main Features of the H2D

The H2D is an advanced 3D printer designed for reliable printing of complex models. With its large print volume, speed of up to 600 mm/s, and dual nozzle system, you can tackle demanding projects using various materials.

Key Features

The Bambu Lab H2D incorporates technologies previously available only in industrial printers. Its combination of high speed, dual nozzle system, and heated chamber removes common obstacles in 3D printing and allows you to focus on results instead of technical issues.

• Dual nozzle system: simultaneous printing with two materials simplifies the production of complex models with supports or multi-coloured objects
• High speed: up to 600 mm/s significantly reduces print times while maintaining quality
• Large print volume: 325 × 320 × 325 mm enables printing large parts or multiple components simultaneously
• Heated chamber: ensures stable printing of technical materials like ABS, ASA, PC , or nylon without warping or cracking
• Print monitoring: 36 sensors and 4 cameras identify issues early to prevent material waste

Technical Specifications

The technical specifications of the H2D set a new standard for desktop printers. Its high speed combined with precise mechanics capable of extreme acceleration allows prints to be completed in a fraction of the time compared to standard devices. The heated bed and chamber ensure stability even when printing the most demanding materials.

• Print volume: 325 × 320 × 325 mm (single nozzle) / 300 × 320 × 325 mm (dual nozzles)
• Print speed: up to 600 mm/s
• Acceleration: 20,000 mm/s²
• Nozzle temperature: up to 350 °C (all-metal hotend)
• Bed temperature: up to 120 °C
• Chamber temperature: up to 65 °C (actively heated)

Dual Nozzle System

The dual nozzle system of the H2D offers a unique solution that overcomes limitations of traditional dual-head printers. Instead of separate print heads, it uses an innovative design with one fixed and one height-adjustable nozzle on a shared base. This approach eliminates common issues like Z-offset calibration between nozzles and significantly speeds up material switching.

• A design featuring one fixed and one height-adjustable nozzle
• Efficient material switching with minimal waste
• Combining different materials (e.g., rigid PLA with flexible TPU)
• Printing soluble support materials for complex geometries

Advanced Features

The H2D uses cutting-edge technology for automation and print monitoring. With integrated cameras and sensors, you can monitor the printing process from anywhere, while the system itself identifies and alerts you to potential issues. Offline operation ensures your data and models remain secure.

• AMS 2 Pro System:: filament drying in a closed system with ventilation (not included)
• Smart monitoring:: 4 cameras, 36 sensors, error detection for safe, high-quality printing
• Connectivity:: WiFi, Ethernet, USB, support for offline operation
• Expandability:: option to add a laser module later on

Practical Applications

The H2D printer finds applications in various professional and hobby fields. Thanks to its combination of speed, precision, and ability to handle technical materials, it provides solutions for a wide range of applications from prototyping to small-scale production of functional parts.

• Designers and engineers:: fast production of functional prototypes with material combinations
• Small-scale production:: heated chamber and monitoring ensure consistent quality across all prints
• Mould and fixture manufacturers:: high-temperature materials enable the production of functional tools
• Educational institutions:: advanced technology suitable for teaching about 3D printing
• Modellers:: precise printing of detailed models with soluble support materials

Expansion Options

Modularity is one of the key features of the H2D. While the basic model offers top-notch 3D printing capabilities, optional laser modules expand its functionality into a comprehensive manufacturing station. This solution allows you to start with a lower investment and later upgrade without purchasing additional devices.

• 10W Variant:: cutting materials up to 5 mm thick, engraving wood, leather, acrylics
• 40W Variant:: cutting materials up to 15 mm thick, faster processing times

Software Support

Bambu Lab H2D supports Bambu Studio, Bambu Suite, and the mobile app Bambu Handy. A new feature is offline operation capability along with support for third-party slicers (Super Slicer, PrusaSlicer, Cura).
