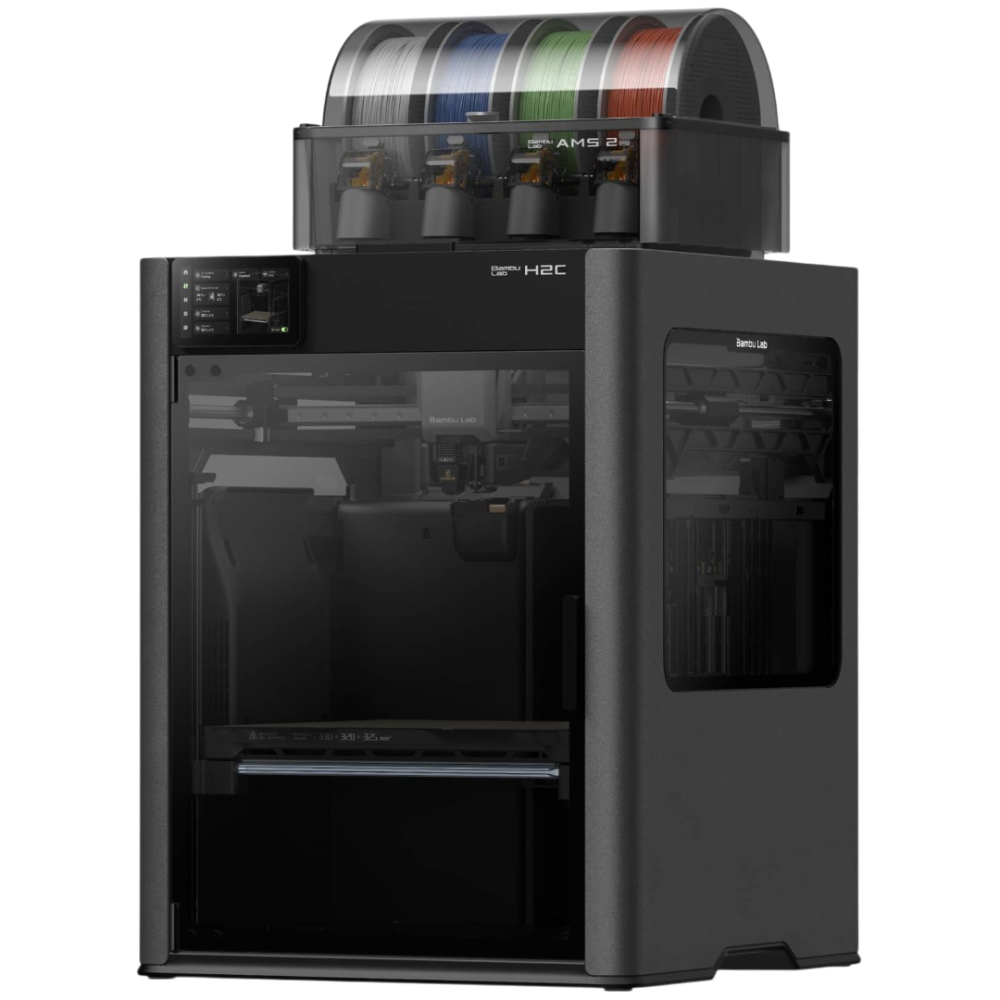

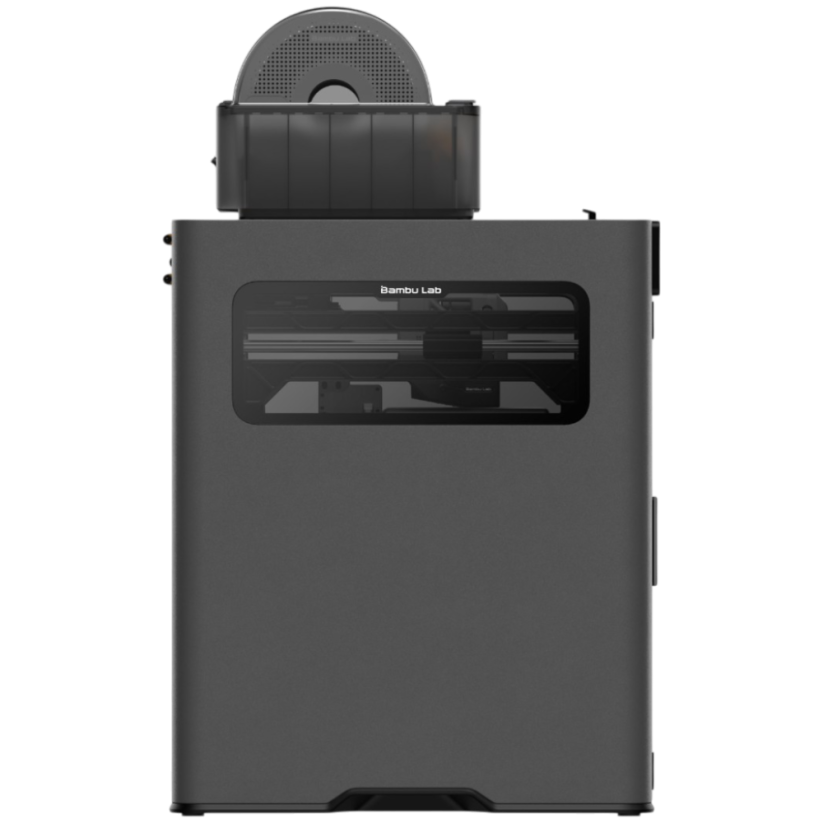

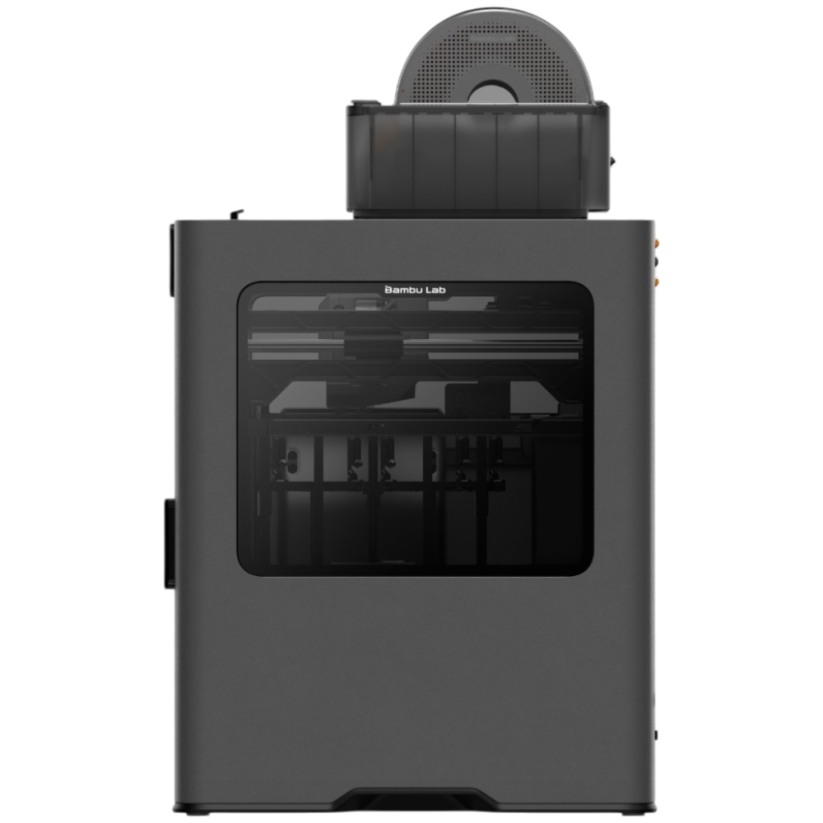

Bambu Lab H2C Combo with AMS 2 Pro

Bambu Lab H2C Combo with AMS 2 Pro

Bambu Lab H2C Combo with AMS 2 Pro is an advanced 3D printer designed for demanding users who seek high performance and flexibility. This printer combines a large print volume, high temperatures and print speed with advanced monitoring and automation features, making it an ideal tool for semi-professional and professional users.

Bambu Lab H2C Combo with AMS 2 Pro offers a print volume of up to 330 × 320 × 325 mm³, allowing you to print large parts or multiple smaller parts at once. A maximum nozzle temperature of 350 °C and an actively heated chamber of 65 °C extend the range of compatible materials to engineering-grade filaments such as ABS, ASA, PC and PA. Induction nozzle heating in just 8 seconds reduces waiting time between material changes and increases productivity.

Vortek Hotend Change System: The H2C's Main Weapon

The H2C is the first Bambu Lab printer with the Vortek Hotend Change System. On the right side of the printhead sits a rack with 6 swappable induction hotends that the printer picks up automatically. The left side holds a single fixed standard hotend. Together this gives you up to 7 materials simultaneously with zero purging between heads.

• Contactless magnetic swap: Hotends are attached magnetically, with no connectors. Power and data are transmitted via induction and high-frequency signaling.
• Induction heating in 8 seconds: Up to 350 °C on all 7 positions.
• Onboard hotend memory: Every hotend remembers the filament it was last loaded with. No mixing up materials, no manual re-assignment.
• Zero purge when switching: The whole hotend swaps, not the filament inside a single nozzle. No purge tower, no waste when changing material.
• Expandable to 24 materials with AMS 2 Pro: Combine Vortek with AMS units for a full multi-material setup.

In practice: dedicate one hotend to an engineering filament like PC or PA-CF, another to PLA, another to TPU, and print without wasting material on every swap. The result is faster multi-material printing with less waste and more stable quality.

Key Features and Benefits

• Large print volume: The printer offers a print volume of up to 330 × 320 × 325 mm³, allowing you to print large parts or multiple smaller parts at once.
• High temperatures: A maximum nozzle temperature of 350 °C and an actively heated chamber of 65 °C extend compatibility to engineering-grade materials.
• Induction heating: Rapid induction nozzle heating in just 8 seconds reduces waiting time between material changes and increases productivity.
• Multi-material support: The printer supports up to 7 materials in a single print and up to 24 materials with parallel AMS units connected, significantly simplifying multi-color and multi-material printing.
• Advanced monitoring: 59 sensors, AI error detection and a quad-camera system help prevent failed prints, saving both material and time.
• Precision: Motion accuracy below 50 μm and nozzle offset calibration to within 25 microns ensure consistent results for functional parts.
• AMS 2 Pro: AMS 2 Pro with active filament drying up to 65 °C helps keep filament in better condition for more stable printing.

Who Is This Printer For

Bambu Lab H2C Combo with AMS 2 Pro is suitable for:

• Bambu Lab printer owners (X1C, P1S, A1): Users who are accustomed to the high quality and performance of Bambu Lab products will appreciate this printer.
• Prusa printer owners (MK3S+, MK4, Mini): Prusa printer users looking for faster printing and multi-color capabilities.
• Creality printer owners (Ender, K1): For those who need a larger print volume and advanced features.
• Hobby printers: For home projects and decorations where print quality and speed matter.
• Semi-professionals: For small production runs and prototypes where speed and precision are essential.
• Professionals: For manufacturing, research and development where reliability and broad material support are required.

Supported Materials

Bambu Lab H2C Combo with AMS 2 Pro supports a wide range of materials, including:

• PLA
• PETG
• ASA
• ABS
• TPU
• Engineering materials: ABS, ASA, PC, PA and composites

Technical Specifications

Specification	Value
Print volume	330 × 320 × 325 mm³
Supported materials	PLA, PETG, ASA, ABS, TPU, engineering materials
Maximum nozzle temperature	350 °C
Actively heated chamber	65 °C
Maximum bed temperature	120 °C
Print speed	1000 mm/s
Connectivity	WiFi, LAN, USB
Software/slicer compatibility	Fused Deposition Modeling (FDM)
Dimensions	492 × 514 × 626 mm
Weight	32.5 kg

What's in the Box

The package includes:

• Bambu Lab H2C printer (with 1× 0.4 mm induction hotend pre-installed on the right and 1× 0.4 mm standard hotend pre-installed on the left)
• AMS 2 Pro unit
• 6 additional hotends for the Vortek system:
  • 3× 0.4 mm hardened steel induction hotend (right side)
  • 1× 0.2 mm induction hotend (right side)
  • 1× 0.6 mm induction hotend (right side)
  • 1× 0.4 mm hardened steel standard hotend (left side)
• Flexible steel plate
• Textured PEI plate
• Built-in filament cutter
• PTFE tubing (185 mm ×2, 225 mm ×2, 900 mm ×1)

Frequently Asked Questions (FAQ)

How does the Vortek Hotend Change System work?

Vortek is a hotend changer system. On the right side of the printhead is a rack with 6 induction hotends that the printer picks up as needed. The left side holds 1 fixed standard hotend. Hotends attach magnetically and communicate contactlessly. Heat-up takes 8 seconds. Every hotend has its own filament memory. There is no purging between hotends, so you print multi-material with no waste. Up to 7 materials at once, and up to 24 with AMS 2 Pro.

What is the print volume of the Bambu Lab H2C Combo with AMS 2 Pro?

The total print volume is 330 × 320 × 325 mm³. For a single nozzle, this is 325 × 320 × 325 mm on the left and 305 × 320 × 325 mm on the right; for dual nozzle, it is 300 × 320 × 325 mm.

What temperatures does the printer support?

The maximum nozzle temperature is 350 °C, the actively heated chamber reaches 65 °C, and the heated bed goes up to 120 °C.

How many materials or colors can be printed at once?

The H2C supports up to 7 materials in a single print. With parallel AMS units connected, up to 24 materials.

How fast does the nozzle heat up?

Induction nozzle heating takes just 8 seconds.

What does the AMS 2 Pro do in this combo?

AMS 2 Pro has 4 slots, active filament drying up to 65 °C, airtight storage and a 24 V 4 A power supply.

What are the dimensions and weight of the device?

The H2C measures 492 × 514 × 626 mm and weighs 32.5 kg. The AMS 2 Pro measures 372 × 280 × 226 mm and weighs 2.5 kg.

Is the H2C suitable for engineering materials?

Yes, according to specifications it supports a 350 °C nozzle temperature, a 65 °C heated chamber and materials such as ABS, ASA, PC, PA and composites.

What sensors and monitoring does the printer offer?

59 sensors, a quad-camera computer vision system, AI error detection and motion accuracy below 50 μm.
