SB COMBO V2 StealthBurner CAN & USB

FYSETC SB CAN Tool Board V2

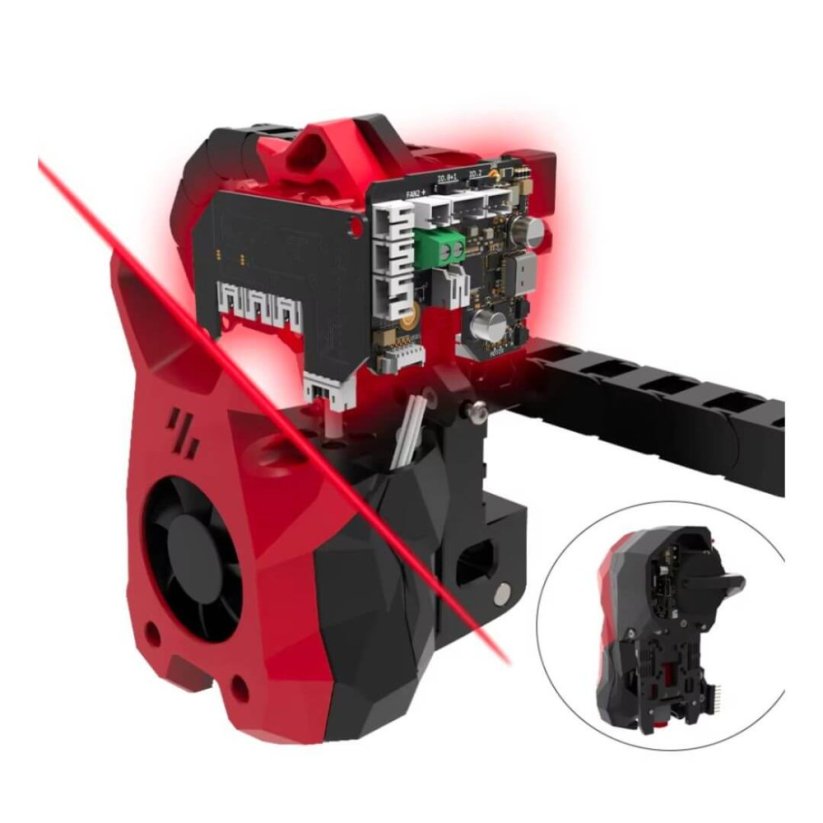

FYSETC SB CAN Tool Board V2 is a high-end board specifically designed for the StealthBurner printhead, offering enhanced communication and control capabilities for 3D printers. With support for Klipper firmware and two communication interfaces (CANBUS and USB), this board provides flexibility and ease of integration into various systems. The main advantage is the significant simplification of cabling – instead of a large bundle of wires leading to each component, only 4 wires (in one bundle) are needed for both communication and power. The board is equipped with several USB ports, allowing the connection of additional devices such as automatic leveling sensors or AI cameras.

This board also adds an integrated ADXL345 accelerometer to the system, enabling vibration measurement and facilitating printhead calibration and print quality optimization. The robust design with a 6-layer PCB and the use of high-quality components, such as tantalum capacitors, ensures long life and stable operation even under demanding conditions.

Key Features:

• STM32F072 Microcontroller: Klipper firmware support ensures high compatibility with modern 3D printers.
• CANBUS and USB interface: Allows flexible connection to various peripherals and control systems.
• Integrated ADXL345 accelerometer: Enables advanced vibration measurement features for print optimization.
• Simplified cabling: One cable for both power and communication instead of complex bundles of wires to each component.
• USB HUB: Three USB ports for connecting additional devices such as sensors or cameras.
• High-performance MOSFETs: Independent control of fans and heating elements with lower heat production.

Technical Specifications:

Electronics:

• Microcontroller: STM32F072CBT6
• Accelerometer: ADXL345
• Motor driver: TMC2209
• Power supply: 11–24 V (XT30 connector)
• MOSFET outputs:
  • HE0 (heating element): up to 5 A
  • Fans: up to 2.5 A each
• USB HUB: 3x USB2.0 ports (1 on an additional board)

Communication:

• CANBUS or USB (switchable via DIP switch)
• Option to connect to Raspberry Pi via USB or CANBUS

Connectors:

• 3x fans
• 1x heating element
• 1x thermistor
• 1x RGB LED strip
• 3x IO pins (for endstops or probes)

Physical Properties:

• Dimensions: Compact design suitable for mounting on the StealthBurner printhead

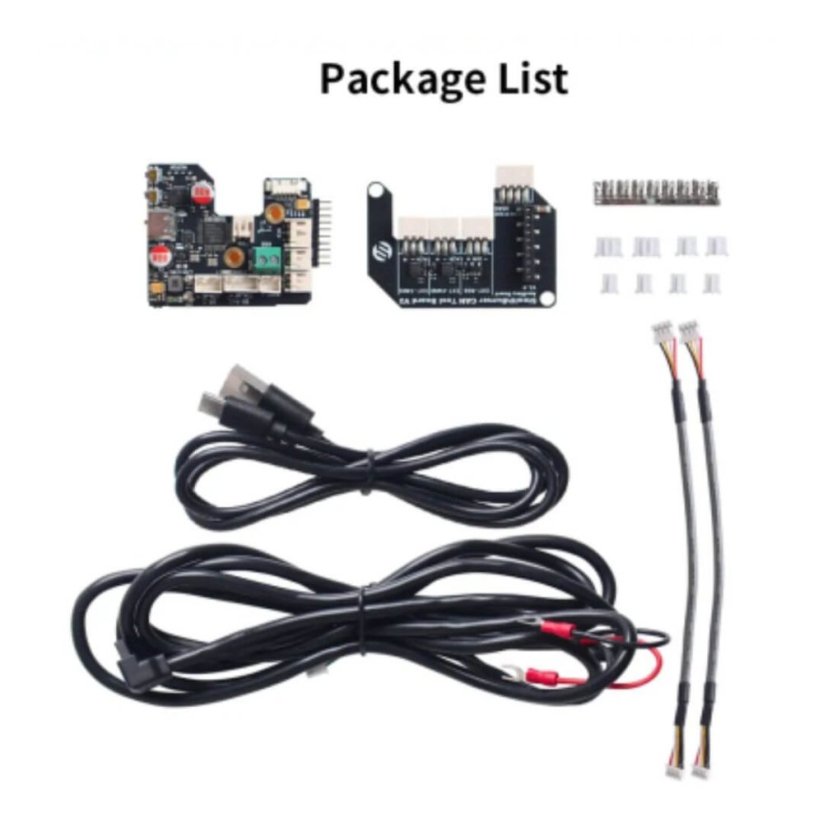

• An additional board allowing easy installation of other components

Note:
The FYSETC SB CAN Tool Board V2 is not compatible with the wiring of the previous version. When upgrading to this version, new wiring must be used.
