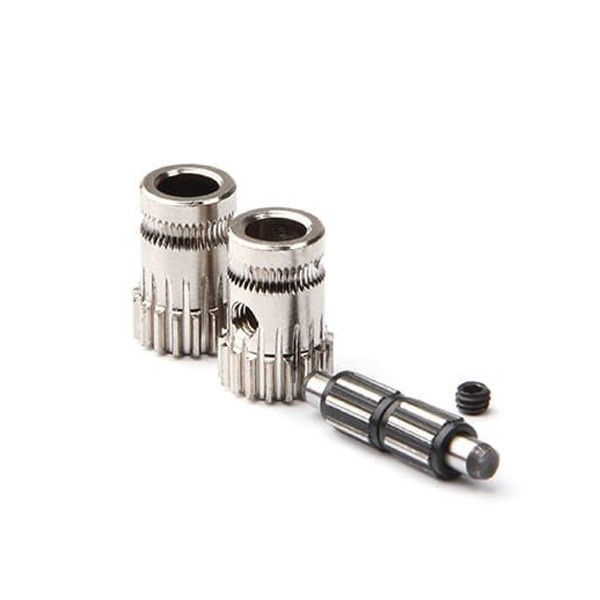

Bondtech BMG Extruder Gears Set (Dual Drive)

These drivegear kits come as a set consisting of a primary drive gear, a secondary drive gear, bearings and a shaft.

Gear set for filament size 1.75 mm, primary gear with inner diameter 5 mm, secondary gear with two needle bearings, M3x2 setscrew and one 3 x 20 mm shaft.

A Lithium based grease is recommended to use on the gear section and inside the needle bearings for low friction and to avoid wear. A small dab of grease is enough.

Compatibility

• Voron V2.4, Trident, V0, Legacy, Switchwire 3D printers - StealthBurner/AfterBurner printheads
• HextrudORT/HevORT
• Prusa MK3/MK3S printers
• All BMG compatible extruders

Package content

• 1x primary gear with inner diameter 5 mm
• 1x secondary gear
• 2x needle bearings
• 1x M3x2 setscrew
• 1x 3 x 20 mm shaft

Product features

• SKU: EXT-KIT33
• Inner diameter of primary wheels: Ø 5mm
• Shaft diameter: Ø 5mm
• Filament diameter: 1.75mm
• Material: Hardened nickel-plated steel (feed wheels)
