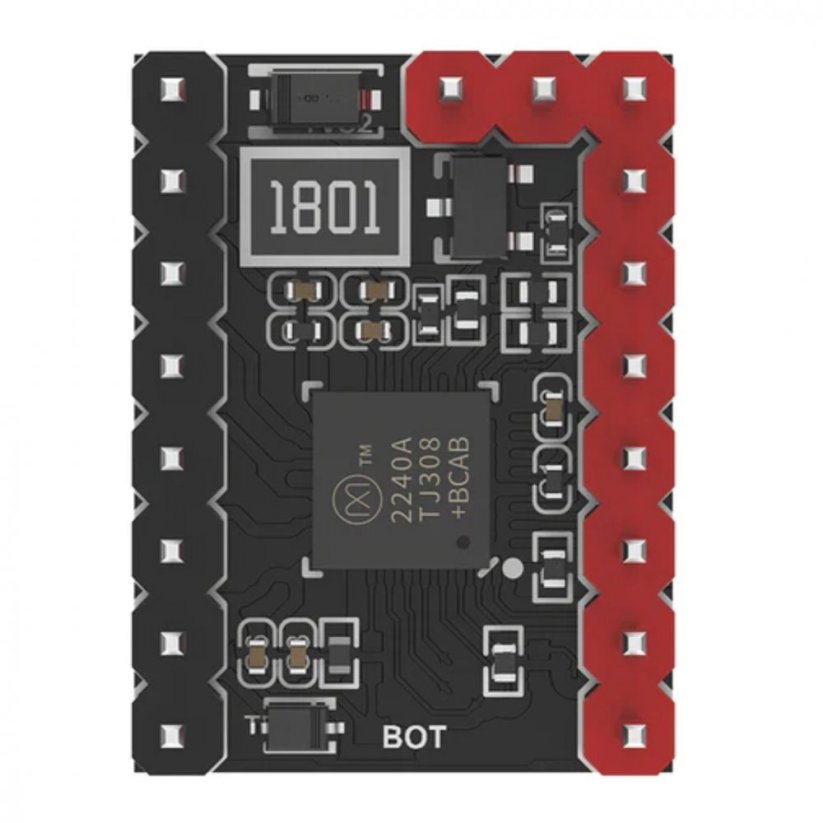

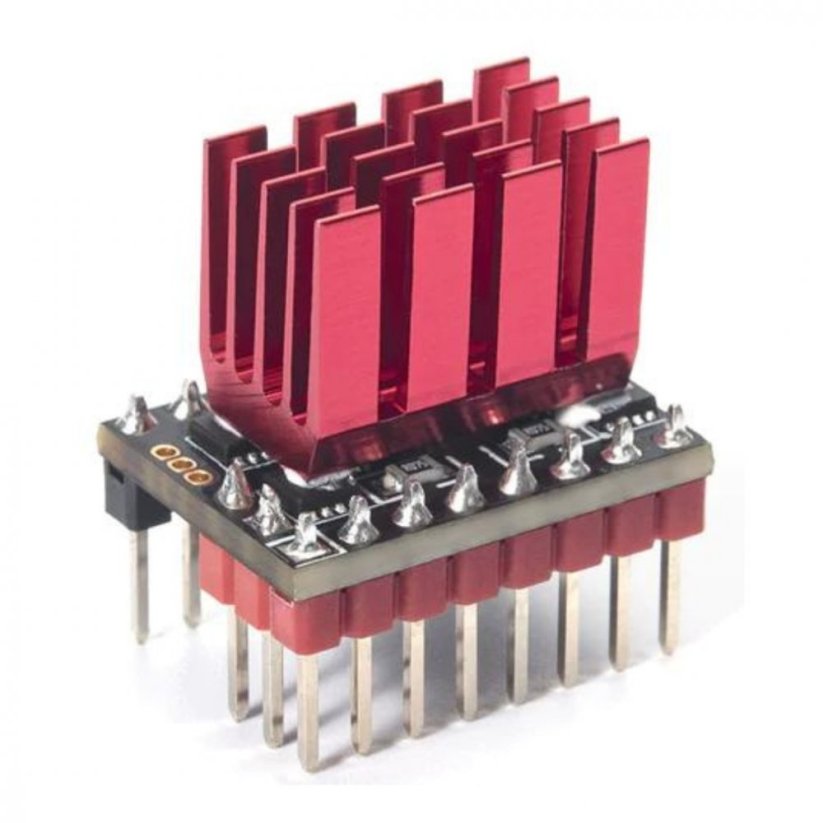

BIGTREETECH TMC2240 V1.0 Driver

Bigtreetech TMC2240 - Quiet, Powerful, and Versatile Stepper Motor Driver

Bigtreetech TMC2240 represents a new generation of quiet stepper motor drivers, offering a multitude of advantages over their predecessors:

• Quiet operation ensured by StealthChop2™ technology
• Highly dynamic motor control thanks to SpreadCycle™
• Sensorless load detection of the motor using StallGuard2™ and StallGuard4™
• Energy savings of up to 75% due to CoolStep™ technology
• Support for a wider voltage range (4.5 V to 36 V)
• Increased output current (3.0 A)
• Fully integrated non-dissipative current sensing

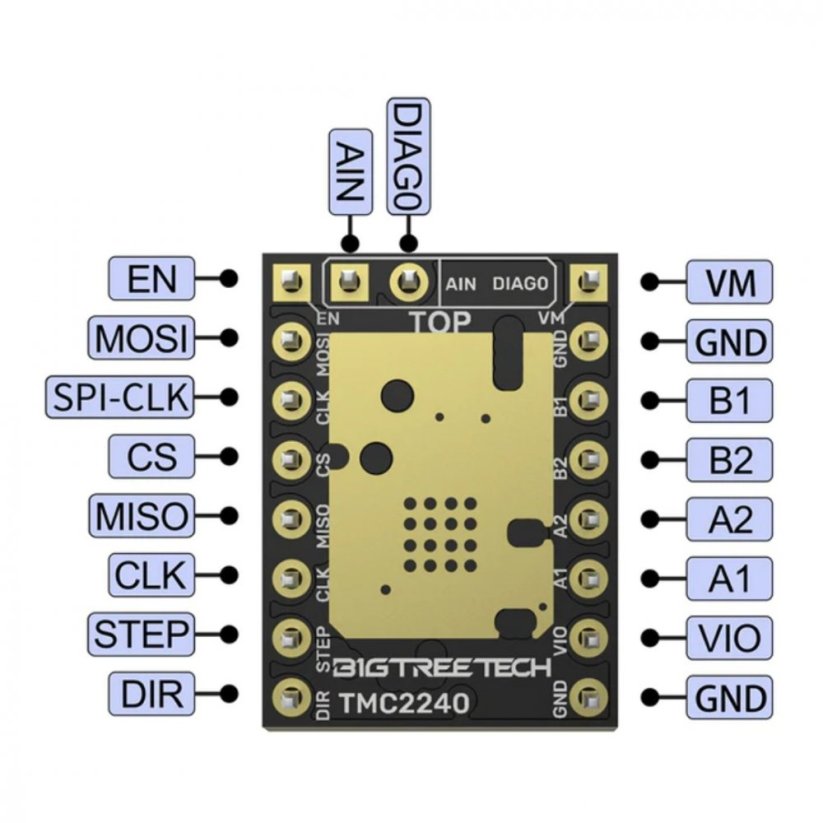

• SPI serial communication interface
• Extensive diagnostic capabilities

Features

Bigtreetech TMC2240 is equipped with StealthChop2™ technology for noise reduction, SpreadCycle™ for efficient motor control, and StallGuard2™ and StallGuard4™ for sensorless load detection of the motor. Thanks to CoolStep™ technology, it is possible to achieve energy savings of up to 75%. The driver also offers support for a wider voltage range, higher output current, fully integrated non-dissipative current sensing, SPI serial communication interface, and extensive diagnostic capabilities.

Applications

The TMC2240 is ideal for a wide range of applications including 3D printers, CNC machines, robotics, and industrial machines.
