BigTreeTech Smart Filament Sensor V2.0

SFS V2.0 from BIGTREETECH is an innovative filament sensor that delivers high precision through photoelectric detection principles. This sensor can identify filament issues in real-time and immediately stop printing, protecting the printer from damage and saving material. Thanks to bi-directional filament feeding, it offers flexible installation regardless of orientation.

It is compatible with a wide range of motherboards and firmware such as Klipper, Marlin or RRF. With LED status indication, it provides immediate visual feedback about the printing progress.

Key Features

Intelligent Detection

  • Alerts to issues such as:
    • Nozzle clogging
    • Filament breakage or tangling
    • Extruder problems
  • Automatically pauses printing to minimise material waste.

LED Status Indication

  • Flashing blue: Normal operation.
  • Red: Filament not inserted or broken.
  • Solid blue: Problem detected (nozzle clogging or extruder malfunction).

Flexible Installation

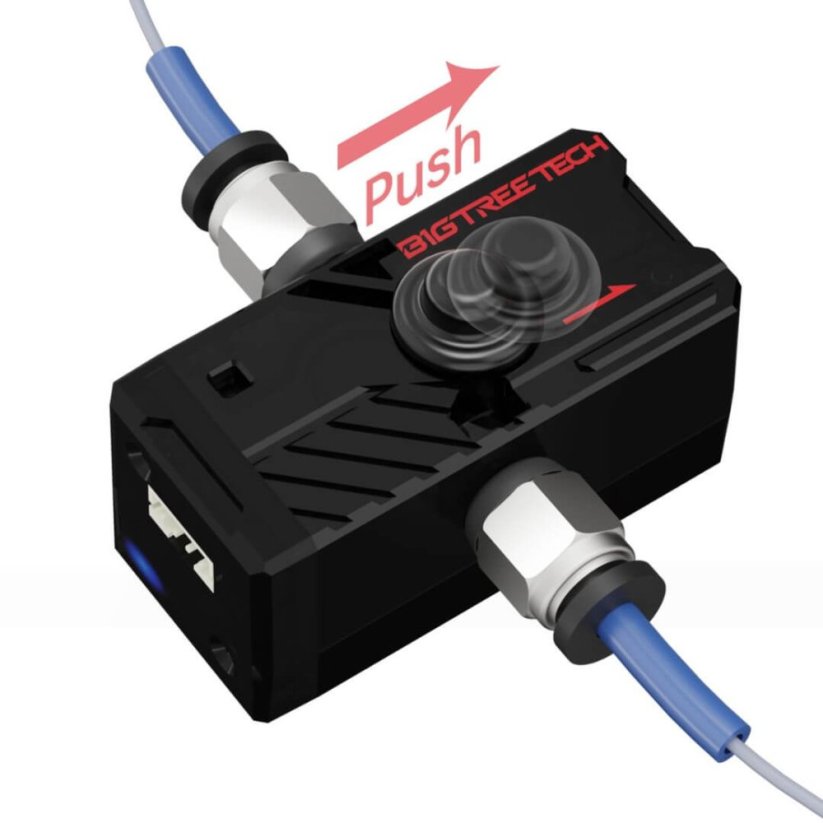

  • Bi-directional filament feeding enables easy installation regardless of orientation.

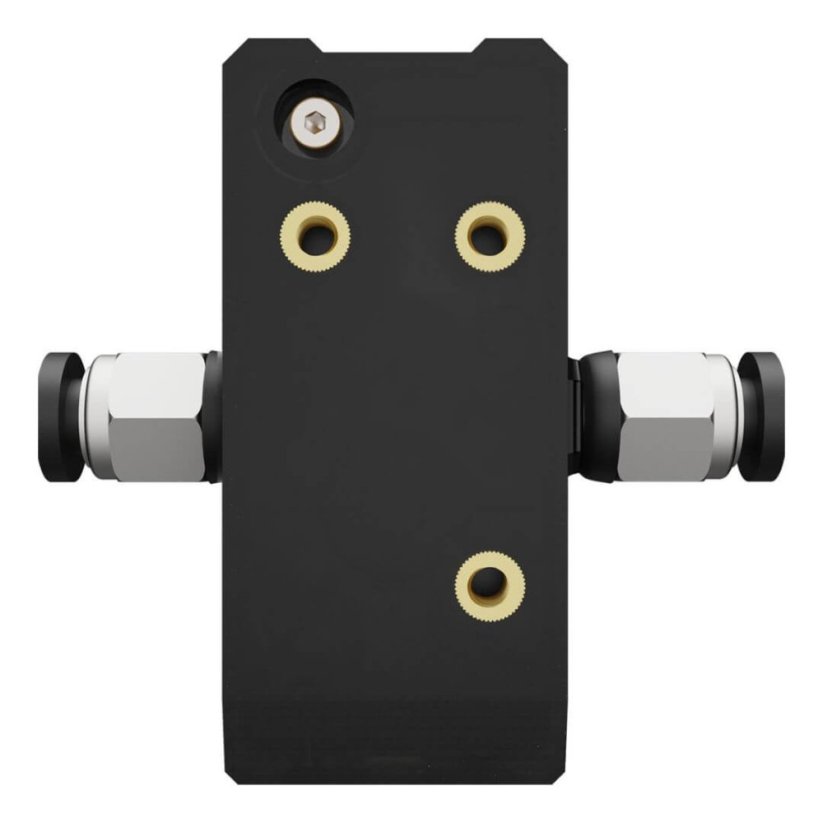

  • Three mounting holes for simple printer attachment (compatible with both Bowden and Direct Drive extruders).

Wide Compatibility

  • Support for motherboards with I/O ports.
  • Compatible with Klipper, Marlin and RRF firmware.

Technical Specifications

Parameter Value
Dimensions 53.1 x 30.3 x 27.3 mm
Weight 36 g
Filament diameter 1.75 mm
Rated voltage 3.3-5V
Operating temperature -10 to +50°C
Operating humidity 10% to 90%
Detection length Min. 2.88 mm
Detection principle Photoelectric sensor

Package Contents

  • 1x BIGTREETECH SFS V2.0
  • 2x PTFE tube (ID2xO.D.4x30 mm)
  • 1x Cable (100 cm)
  • 2x PC4-M6 pneumatic connector
  • 2x Collet and clip set
  • 3x M3x6 screw

Why Choose BIGTREETECH Smart Filament Sensor V2.0?

This sensor is an ideal choice for FDM printer users seeking a reliable way to detect filament issues. With its high precision and easy installation, it increases printing efficiency and protects the printer from damage caused by faults during printing. Its wide compatibility and intuitive LED signalling make it an excellent addition to modern 3D printers.

Parameters
Recommended by Voron Community Yes
Firmware Klipper
Voron V2.4, Trident, V0, Switchwire
Voltage 5 V, 24 V
Voron Mod StealthBurner
