BIGTREETECH SKR Pico V1.0 - a new motherboard with an unbeatably compact size that is ideal for connecting with Raspberry PI. It offers a lot in a small space. It is equipped with four TMC2209 UART drivers and a 133Mhz 32-bit processor with 264Kb flash.
The motherboard was designed with the needs of the Voron V0 in mind but will serve any printer with four controllable motors
Powerful processor and enough memory
Excellent cooling of the motor drivers
UART
Marlin and Klipper compatibility
RGB connectivity
3x input for PWM controlled fan
Interface for connecting two Z motors More
Manufacturer: BigTreeTechProduct code: 431 Shipping and Payment
BIGTREETECH SKR Pico V1.0 - a new motherboard with an unbeatably compact size that is ideal for connecting with Raspberry PI. It offers a lot in a small space. It is equipped with four TMC2209 UART drivers and a 133Mhz 32-bit processor with 264Kb flash.
The motherboard was designed with the needs of the Voron V0 in mind but will serve any printer with four controllable motors
Powerful processor and enough memory
Excellent cooling of the motor drivers
UART
Marlin and Klipper compatibility
RGB connectivity
3x input for PWM controlled fan
Interface for connecting two Z motors More
Manufacturer: BigTreeTechProduct code: 431 Shipping and Payment

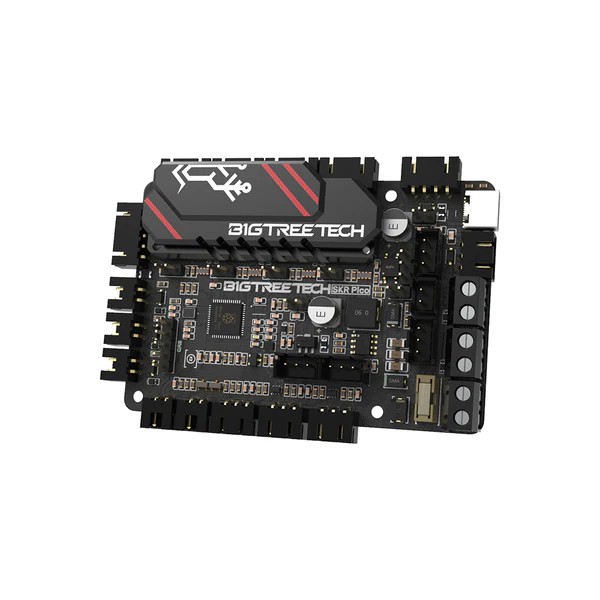

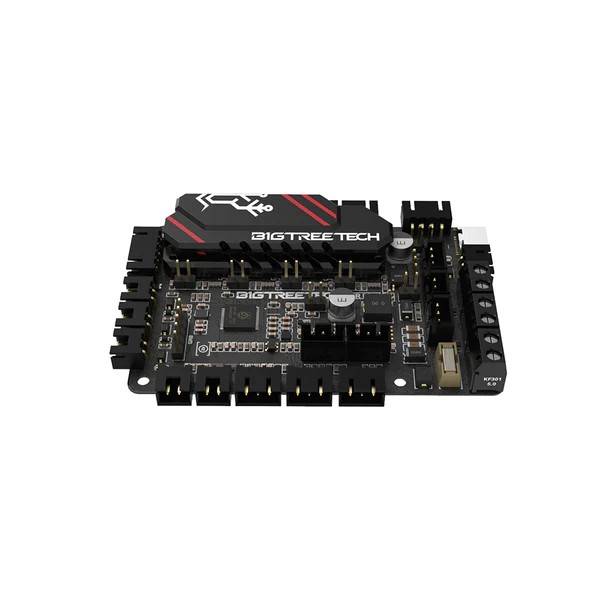

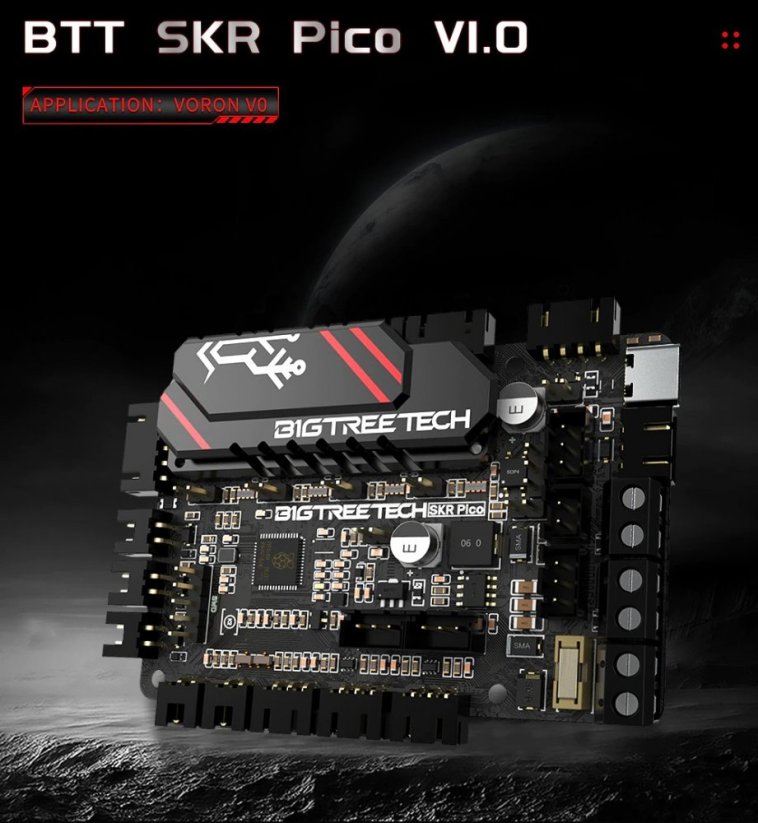

BIGTREETECH SKR Pico V1.0 is a very compact and well designed motherboard designed primarily for Voron V0. It will also find its application in other 3D printers. It offers more in a small space than other boards of larger dimensions.
Features:

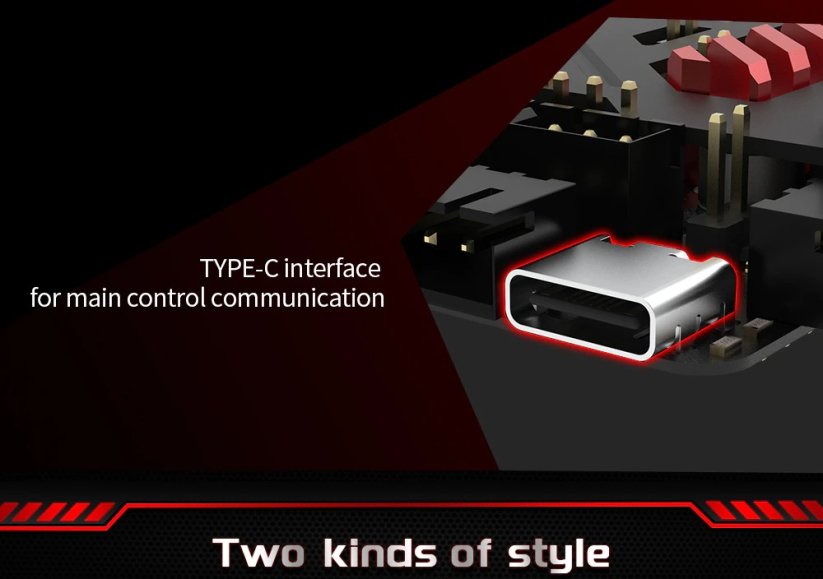

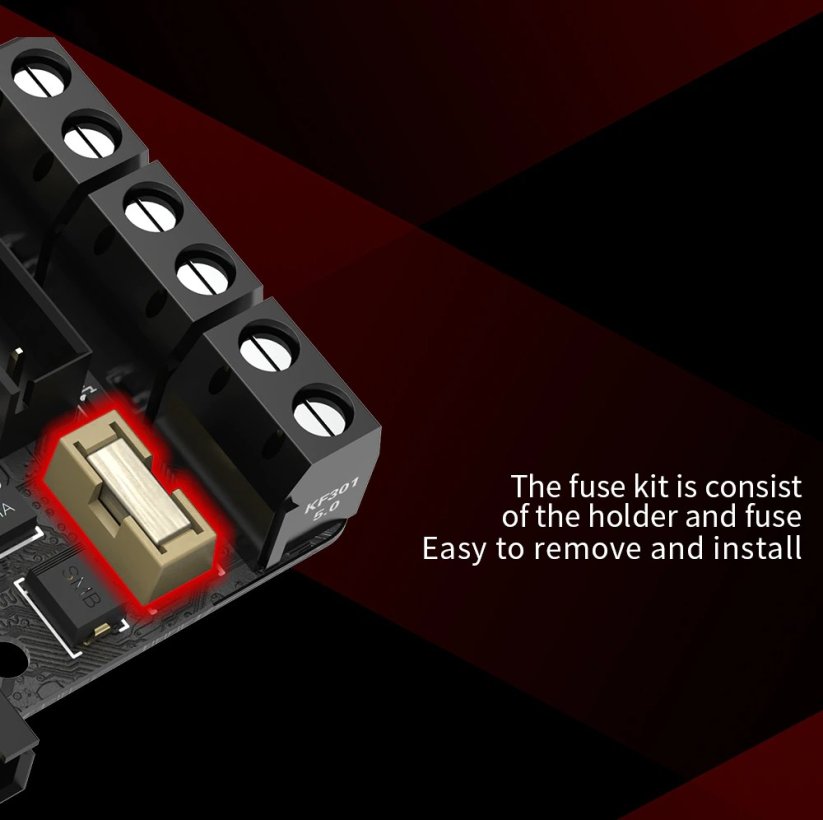

- Brand-new Version for Voron V0& V0.1. Featured with Raspberry Pi ARM Cortex- M0+ MCU PR2040, Bigtreetech SKR Pico V1.0 upgraded on ID design, which coexists of stylish appearance and excellent performances, ideal choice for Voron players. The fuse kit consists of fuse and holder, which enables easy disassembling and installation. Type-C interface allows for main control communication.

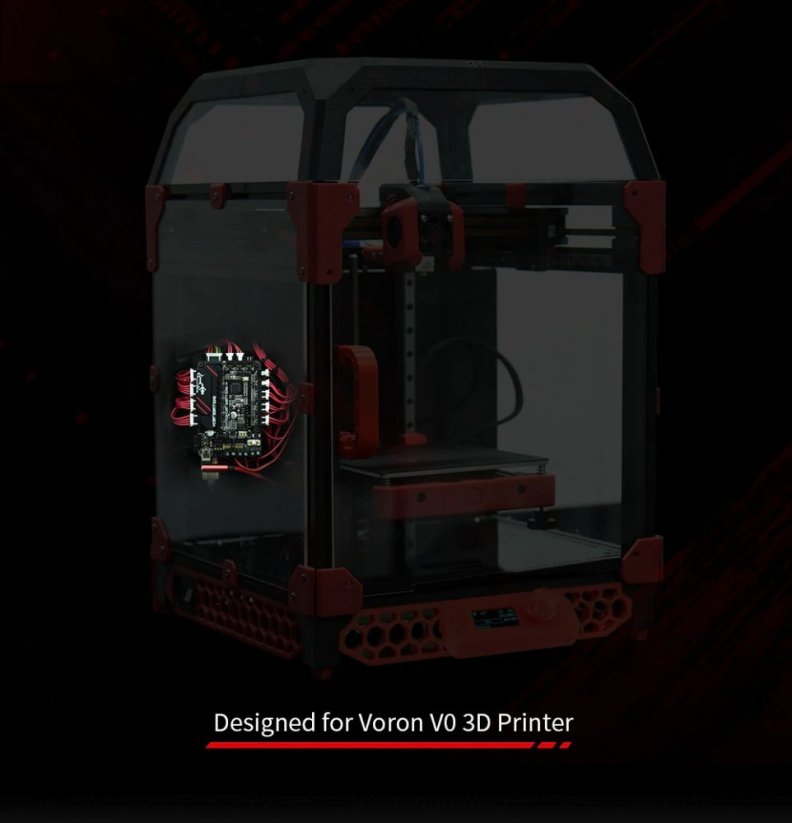

- Perfectly match With Raspberry PI. With the Raspberry Pi board frame, Raspberry Pi can be perfectly installed on BTT SKR Pico V1.0, saving internal space. The unique lateral design of SKR Pico‘s seat perfectly matches the space characteristics of the Voron V0 and V0.1 machine that needs to be fixed to the motherboard longitudinally.

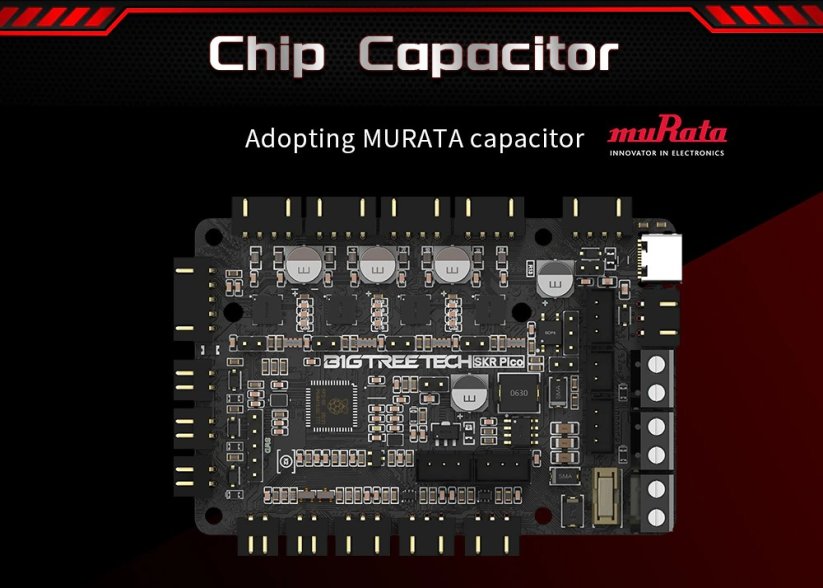

- Mute Printing & Premium Capacitors. Featured with TMC2209 mute driver UART mode, SKR PICO V1.0 supports mute 3D printing. The main version of the chip capacitor (MLCC) adopts high-quality Murata capacitors to enhance the product's quality.

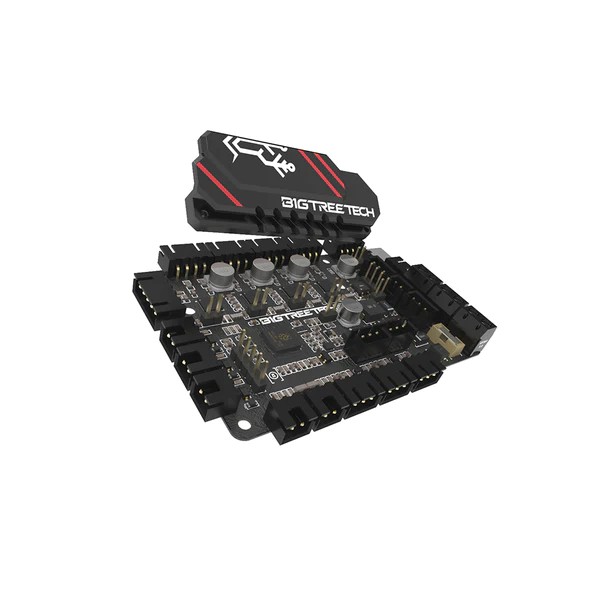

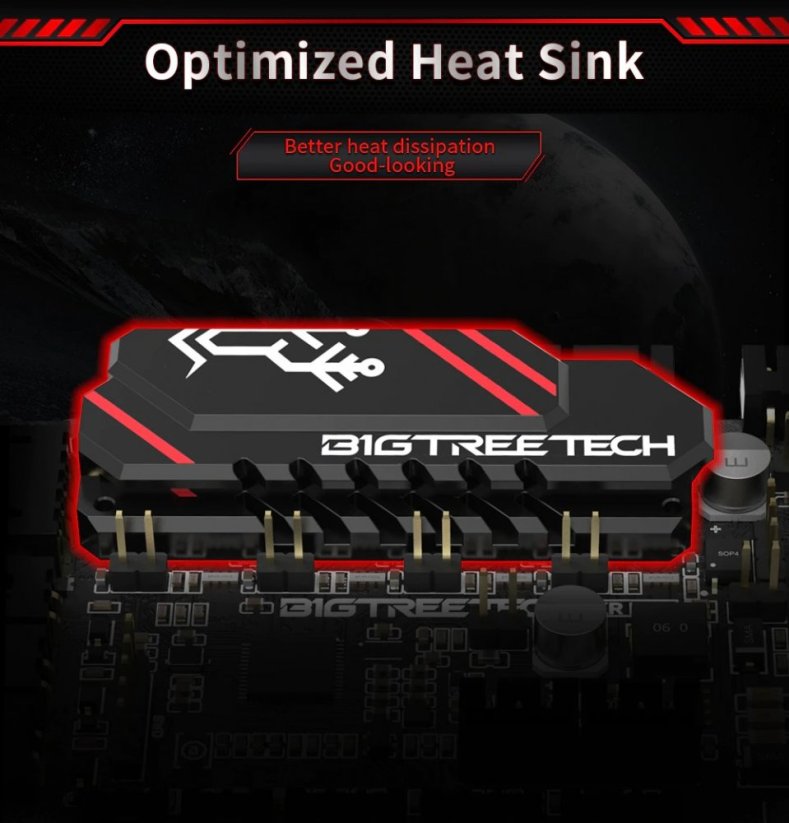

- Upgraded Heat Dissipation. Upgrade the design of the heat sink and increase the heat dissipation area. Increased controllable fan enables to lower the temperature of the whole machine when the it's working, effectively solving problems related to heat dissipation, and improving on the heat dissipation.
Compatibility
- Voron Community 3D printers - Voron V0.1, Voron V0
- Other 3D printers like Creality Ender 3, Ender 5, CR-10 family
- Marlin, Klipper firmware
Features

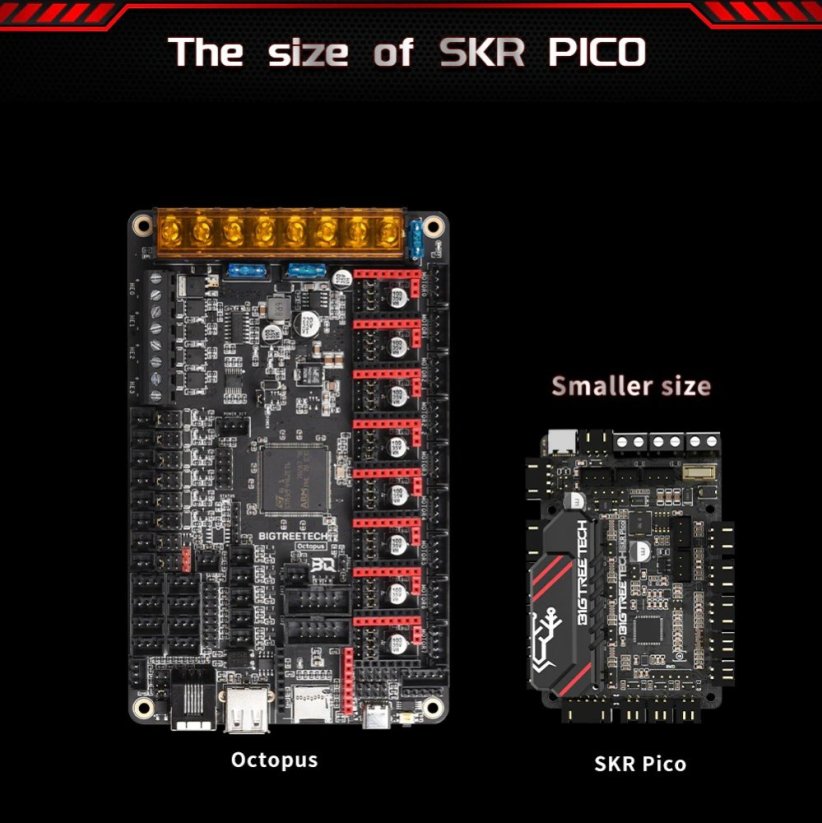

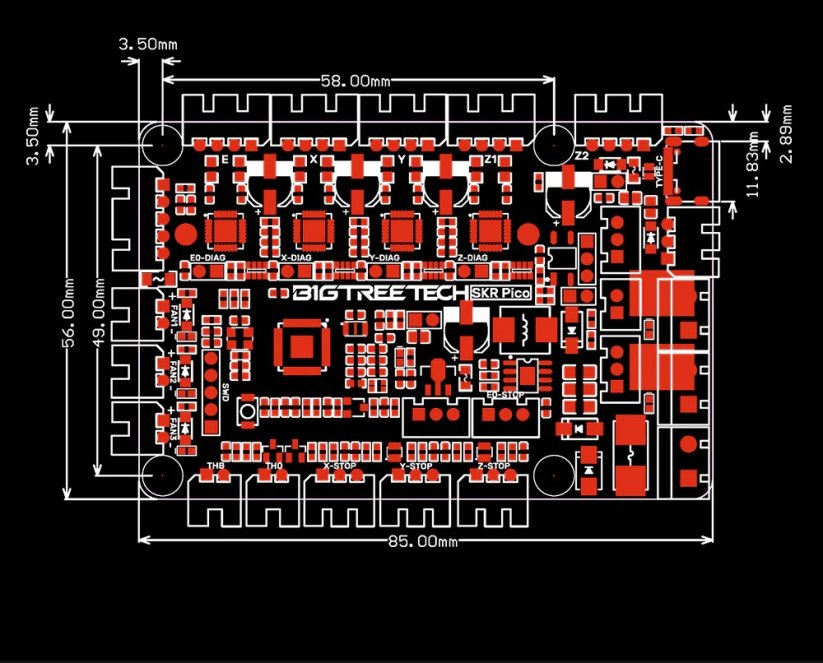

- Dimensions: 85 x 56 mm

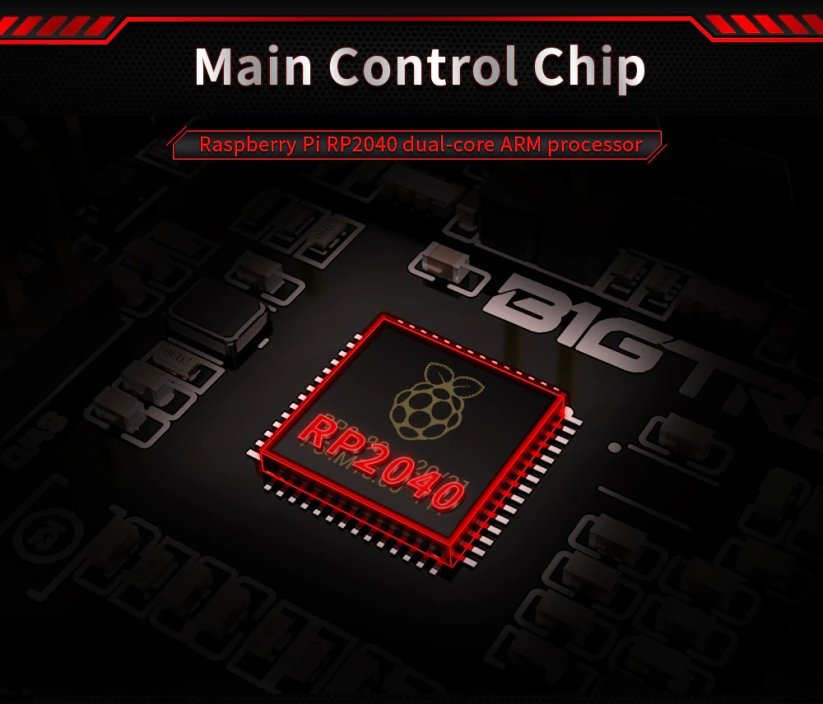

- Microprocessor: Raspberry Pi ARM Cortex M0+ PR2040
- Input voltage: 12V/24V
- Voltage for logic circuits: 3.3V
- Supported driver modes: UART
- Firmware support: Marlin, Klipper
- Number of motor drivers: 4+1
- Motor Drivers: TMC2209 UART
- Number of PCB layers: 4
- Interfaces for temperature sensors: 2
- Number of connectable heaters: 2
- Number of PWM controlled fans: 3
- USB: USB-C (115200 baud communication with PC)
- Interfaces: Bl-Touch, RGB
Documentation
| Manufacturer | BigTreeTech |
|---|---|
| Recommended by Voron Community | Yes |
| Firmware | Klipper|Marlin |
| Voron | V0 |
| Dimensions | 85 x 56 mm |
| Compatible models | Creality CR-10|Řada Creality Ender 3|Creality Ender 5 |
| Voltage | 12 V|24 V |
| Microprocessor | ARM 32-bit Cortex M0+|RP2040 |
| Motor driver sockets | 4+1 |
| Temperature sensor interfaces | 2 |
| Number of heating elements | 2 |
| Motor controller mode | UART |
| Processor frequency | 133Mhz |
| PWM count | 3 |
| Memory | 264Kb |
| USB type | USB-C |
