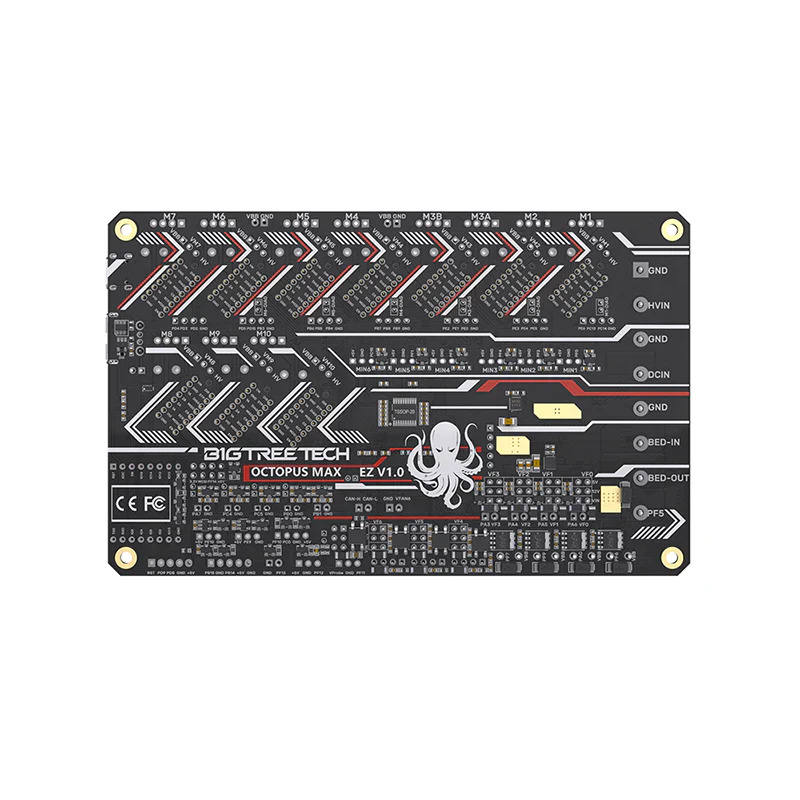

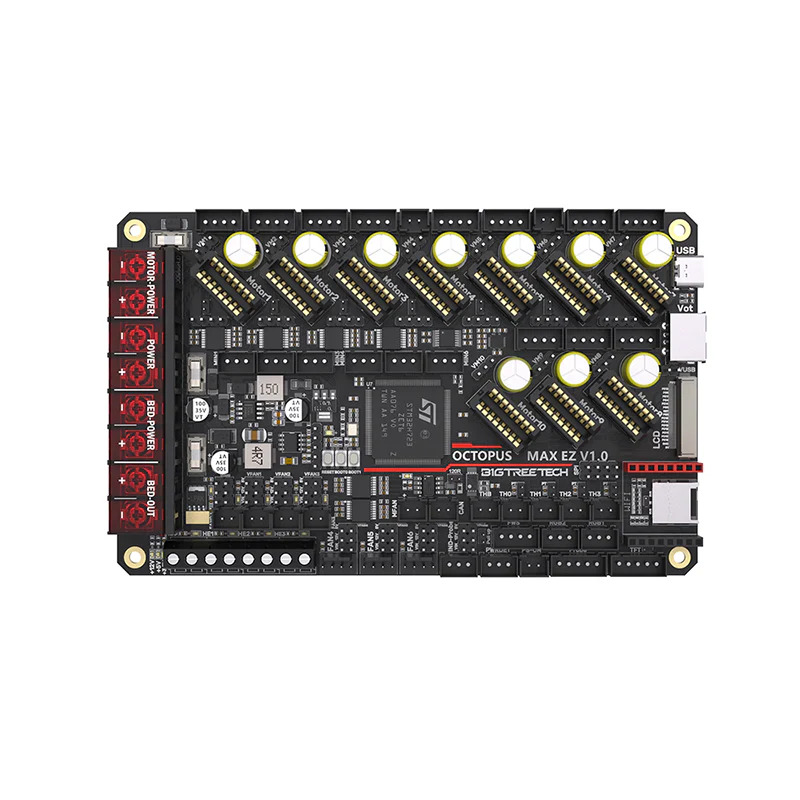

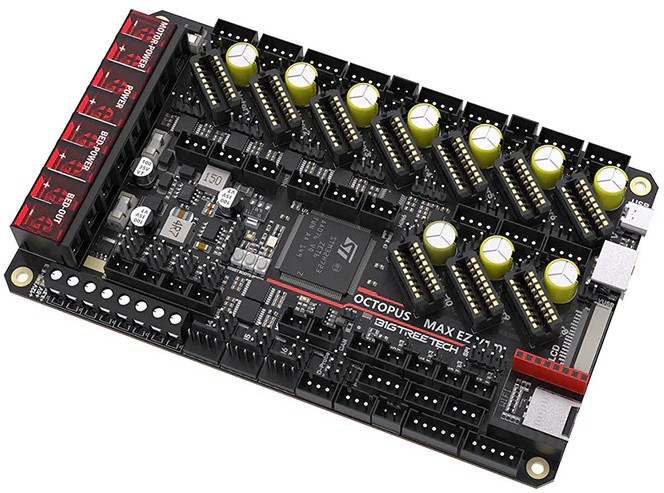

BIGTREETECH Octopus MAX EZ V1.0

Octopus MAX EZ V1.0: Flexible Motherboard for 3D Printers

Octopus MAX EZ V1.0 is a top-tier motherboard designed for demanding 3D printers who seek reliability, performance, and flexibility. This board is ideal for the 3D printing community looking to elevate their projects to the next level with advanced features and easy integration.

Key Features of Octopus MAX EZ V1.0

• Powerful Processor: The board is equipped with a 32-bit STM32H723ZET6 processor, ensuring fast and efficient data processing.
• Multi-Axis Support: Allows control of up to 10 axes, ideal for more complex 3D printing projects.
• Compatibility with Various Drivers: Supports EZ TMC2209, EZ TMC2226, EZ TMC5160, and other drivers, ensuring quiet and precise movement.
• Option to Add Wi-Fi Module
• Raspberry Pi Power Supply: With up to 5A power, the USB can power a Raspberry Pi, increasing flexibility and expansion options.
• CAN Communication Support: Enables efficient and fast communication between printer components using the XH2.54 connector.
• Safety Features: Includes protection against overvoltage, overheating, and short circuits, enhancing device safety and longevity.

Main Advantages

• High Flexibility: With support for up to 10 axes and various drivers, the board is suitable for a wide range of 3D printers, including the most advanced models.
• Easy Integration: Thanks to its intuitive design and detailed manual, the board's installation and setup are simple even for less experienced users.
• Wireless Control: The option to add a Wi-Fi module allows convenient remote control of the printer, ideal for both professional and hobby use.
• Raspberry Pi Power Supply: The ability to power a Raspberry Pi directly from the board simplifies integration and expands usage possibilities.
• CAN Communication: Efficient and fast communication between components ensures reliable and synchronized operation.
• XH2.54 Connector: Easy and secure connection of various components enhances user comfort.

Technical Information and Recommended Printing Conditions

• Processor: STM32H723ET6 32-bit
• Frequency: 550MHz
• Number of Axes: Up to 10
• Supported Drivers: TMC2209, TMC2226, TMC5160, and others
• Power Supply: 12V/24V, USB with up to 5A power for Raspberry Pi
• Communication: USB, CAN with XH2.54 Pin Interface, option to add Wi-Fi module ESP8266/ESP32
• Connectors: XH2.54
• SD Card: SPI protocol
• Number of Fuses: 10
• Limit Switches + Filament Sensor: 6+1
• HV Drive: 10
• Dimensions: 160mm x 100mm

Practical Tips for Use

• Driver Optimization: For quiet and precise printing, we recommend using TMC2209 or TMC5160 drivers.
• Raspberry Pi Power Supply: Utilize the option to power a Raspberry Pi directly from the board to expand functionality and simplify integration.
• CAN Communication: Use CAN communication for efficient and fast synchronization between printer components.
• Safety Measures: Regularly check temperature and power to prevent overheating or overvoltage.

Octopus MAX EZ V1.0 is the ideal choice for anyone looking to elevate their 3D printing projects to the next level with advanced features and easy integration.

Special Instructions for Maintaining Quality

• Storage: Keep the board in a dry and clean environment to prevent damage to electronic components.
• Handling: Use anti-static wristbands when installing and handling the board to prevent damage to sensitive components.

Notice on Variability of Printing Conditions

Each 3D printer and slicer may require different parameter settings. We recommend performing test prints and fine-tuning parameters according to the specific printer model and slicer used. This will ensure optimal print quality and reliability.

Github

https://github.com/bigtreetech/Octopus-Max-EZ
