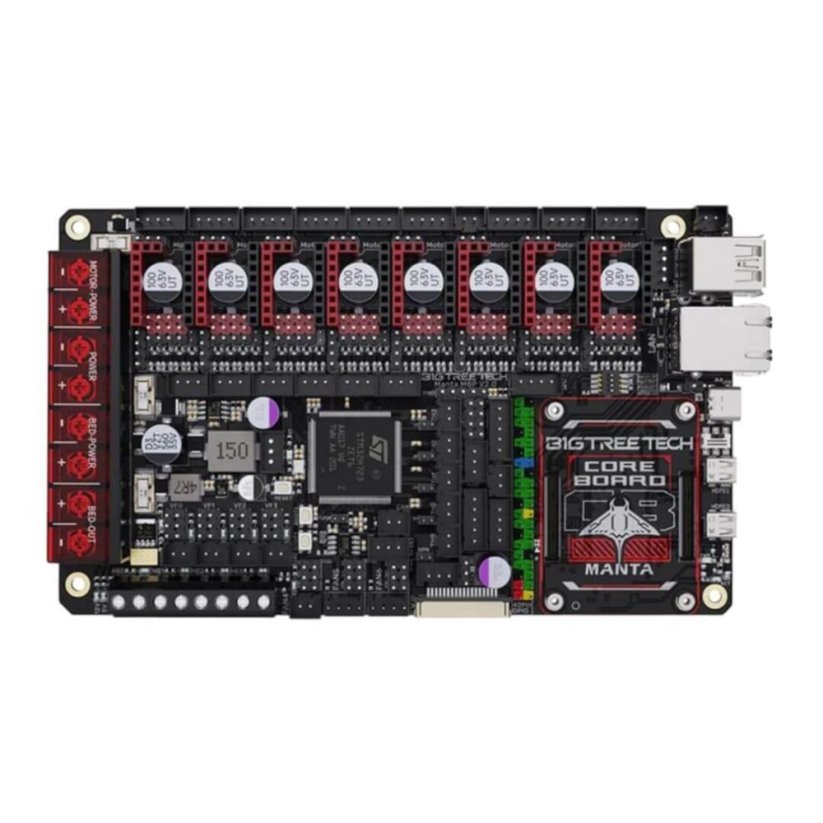

Bigtreetech Manta M8P v2.0
Bigtreetech Manta M8P v2.0
Bigtreetech Manta M8P V2.0 is an advanced control board designed to operate with Klipper firmware, enabling high-speed and precise 3D printing. Thanks to its powerful microcontroller, diverse interfaces and expansion support, it is an ideal choice for demanding users and professionals. More
Manufacturer: BigTreeTechProduct code: M8PV20 Shipping and Payment
Bigtreetech Manta M8P V2.0 is an advanced control board designed to operate with Klipper firmware, enabling high-speed and precise 3D printing. Thanks to its powerful microcontroller, diverse interfaces and expansion support, it is an ideal choice for demanding users and professionals. More
Manufacturer: BigTreeTechProduct code: M8PV20 Shipping and Payment
Bigtreetech Manta M8P V2.0
The Bigtreetech Manta M8P V2.0 represents the pinnacle of control boards for 3D printers, particularly due to its compatibility with Klipper firmware and direct integration capabilities with BIGTREETECH CB1, CB2, or Raspberry Pi CM4 modules. This board is designed to meet high-speed printing and precise control requirements, making it an ideal choice for advanced hobbyists and professionals alike.
The main benefits include a powerful STM32H723ZET6 processor running at 550 MHz, extensive expansion options for modules such as BL Touch or RGB lighting, and advanced protective mechanisms thanks to eFuse technology. These features make the Manta M8P V2.0 a reliable and flexible foundation for modern 3D printers.
Key Technical Features
Performance and Compatibility
- STM32H723ZET6 microcontroller with 550 MHz frequency ensures rapid data processing.
- Compatibility with BIGTREETECH CB1, CB2, Raspberry Pi CM4, and Linux system for easy Klipper implementation.
- Support for various open-source firmware, including Klipper and Marlin.
Interface and Connectivity
- 8 slots for stepper motor drivers.
- Extensive connection options: 2x Micro HDMI, 3x USB Host 2.0, I2C, CAN bus.
- Selectable fan voltage (5V/12V/24V) for flexible usage.
Protection and Reliability
- eFuse overload protection ensures safe board operation.
- TPS5450-5A power chip provides stable 5A output.
- Reinforced installation option using screws for increased mechanical durability.
Expansion Options
- Support for modules such as BL Touch, LCD screens, RGB lighting, or automatic shutdown.
- Dedicated CAN bus port enables easy connection with other devices.
Technical Specifications
General Parameters
- Microcontroller: STM32H723ZET6
- Frequency: 550 MHz
- Driver slots: 8
- Thermistors: 5x NTC 100K
Connectivity
- USB: 1x USB OTG/UART, 3x USB Host 2.0
- HDMI: 2x Micro HDMI
- Interface: I2C, CAN bus
Power
- Power chip: TPS5450-5A (5A output)
- Fan voltage: Selectable (5V/12V/24V)
Additional Features
- eFuse overload protection.
- Compatibility with CM4, CB1, and CB2 modules.
Why Choose Bigtreetech Manta M8P V2.0?
This control board is an ideal solution for those seeking a powerful and reliable solution for modernising their 3D printer. Thanks to Klipper support, it offers high-speed printing and precise control, whilst the wide range of interfaces and expansion options ensures maximum flexibility in printer configuration.
Manufacturer | BigTreeTech |
---|---|
Recommended by Voron Community | Yes |
Firmware | Klipper |
Voron | V2.4, Trident, V0, Switchwire |
Dimensions | 170 x 102.7mm |
Voltage | 24 V, 12 V |
Microprocessor | STM32H723ZET6 |
Motor driver sockets | 8+1 |
Temperature sensor interfaces | 5 |
Number of heating elements | 4 |
Motor controller mode | UART, SPI, STEP/DIR |
Processor frequency | 550 MHz |
PWM count | 7 |
Memory | 16 MB |
USB type | USB-C |
