MANTA M8P V1.1: Powerful Motherboard for 3D Printers

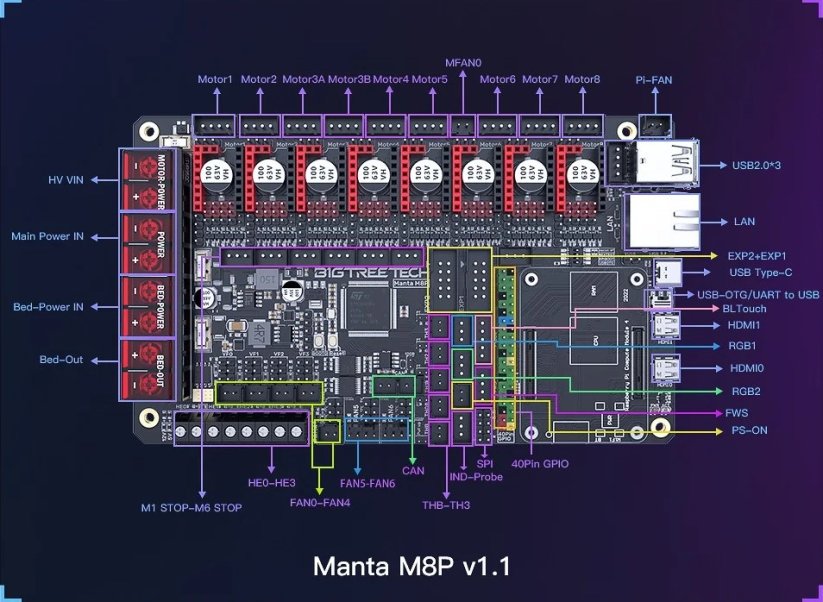

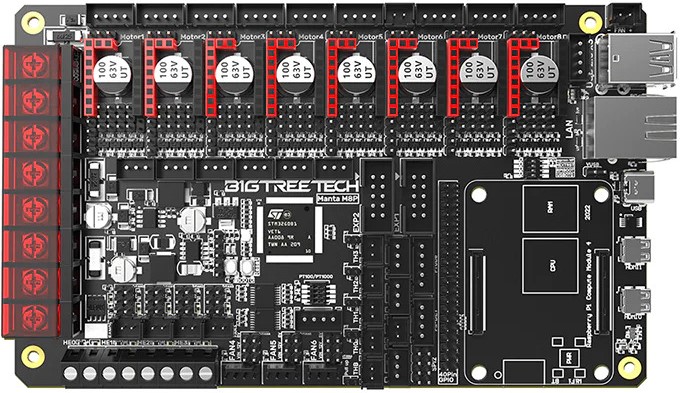

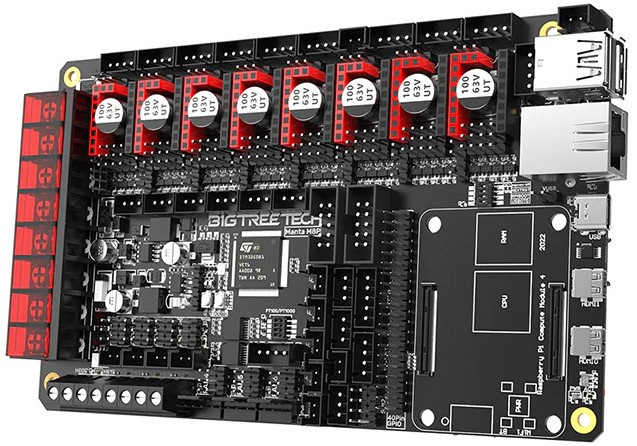

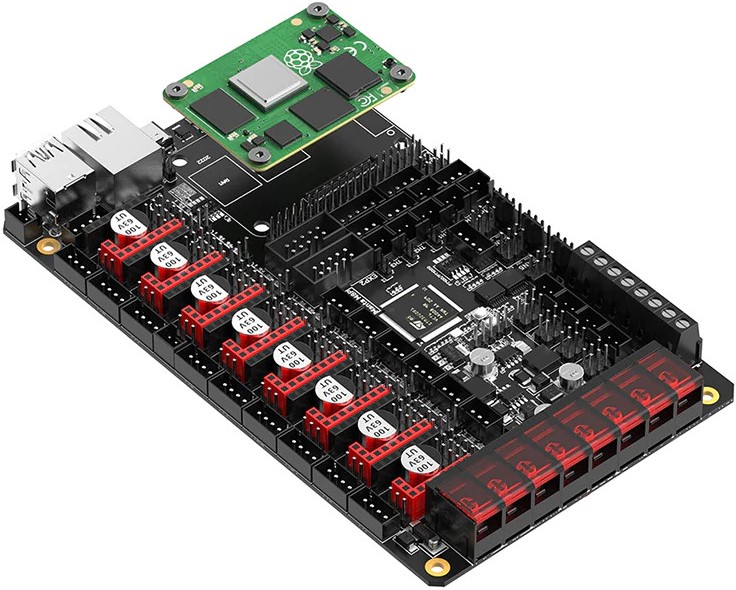

Manta M8P v1.1 is a universal 32-bit motherboard with 8 slots for motor drivers. This makes it suitable for Voron 2.4, Trident, and other machines (such as VZBOT) that require control of more than just the standard 4 or 5 motors. It features a slot for easy connection of Raspberry PI CM4 or BTT CB1, simplifying the wiring considerably. Additionally, there's no need for an additional power source for the Raspberry. It offers a wide range of connectors and ports for connecting additional accessories, although compared to the Octopus board, there are fewer of them, as some connectors had to make way to integrate the CB1 connector.
Main Benefits
- High Performance: The heart of the board is a 32-bit ARM Cortex-M0+ STM32G0B1VET6 processor with a frequency of 64 MHz, ensuring fast and stable performance.
- Power Supply: TPS5450-5A power chip supports DC12/24V input voltage with an output current of up to 5A, ideal for Raspberry Pi.
- Flexible Configuration: It offers the possibility of updating the bootloader via DFU, a protective circuit for thermistors, and support for PT1000 without an external module.
- Expandability: The board has rich expansion ports for various modules such as BL Touch, LCD screen, RGB lighting, and automatic shutdown.
- Security Features: Including eFuse circuit protection for quick response and protection against overload and short circuit.
- Dimensions and Compatibility: The product dimensions are 170 x 102.7mm, and it is compatible with a wide range of printers.
- Optional Fan Voltage: 5V/12V/24V
Technical Specification of MANTA M8P V1.1
- Microprocessor: ARM Cortex-M0+ STM32G0B1VET6, 64 MHz.
- Input Voltage: VIN (12V/24V) or HV (≤56V).
- Main Board Voltage: VIN = DC12V or DC24V.
- Heated Bed Voltage: BED IN = DC12V or DC24V.
- Logic Voltage: DC3.3V.
- Output Ports: Heated bed (HB), hotend (HE0, HE1, HE2, HE3).
- Maximum Output Current of Heated Bed Port: 10A, peak value: 12A.
- Maximum Output Current of Hotend Port: 5.5A, peak value: 6A.
- Fan Ports: Two-wire fan (FAN0, FAN1, FAN2, FAN3), four-wire fan (FAN4, FAN5, FAN6), always-on fan (24V FAN x 2), fan voltage optionally 5V, 12V, 24V.
- Maximum Output Current of Fan Port: 1A, peak value: 1.5A.
- Total Current for Hotend, Drivers, and Fans: <12A.
- Expansion Interfaces: BLTouch, PS-ON, Filament sensor, RGBx2, SPI.
- Motor Drivers: Support for TMC5160, TMC2209, TMC2225, TMC2226, TMC2208, TMC2130, ST820, LV8729, DRV8825, A4988...
- Driver Modes: Support for SPI, UART, STEP/DIR.
- Driver Interfaces: Motor1, Motor2, Motor3 (dual motor interface), Motor4, Motor5, Motor6, Motor7, Motor8, a total of eight positions.
- Thermistor Interfaces: 5x, including 4x 100K NTC and 1x PT1000.
- Screen Support: SPI, HDMI.
- PC Communication Interface: Type-C.
- Functional Interface: USB 2.0 x 3, LAN, DSI, CSI, SPI, 40Pin-GPIO, HDMI0 and HDMI1, SOC-Card, MCU-Card.
Practical Tips and Warnings
- Installation and Maintenance: When working on the board, it's important to ensure that it is disconnected from power, including disconnecting the eMMC.
- Wiring for Voron V2.4 printers can be found here. Wiring for Trident is very similar.
Manufacturer | BigTreeTech |
---|---|
Recommended by Voron Community | Yes |
Firmware | Klipper |
Voron | V2.4, Trident, V0, Switchwire |
Dimensions | 170 x 102.7mm |
Voltage | 24 V|12 V |
Microprocessor | ARM 32-bit Cortex M0+ |
Motor driver sockets | 8+1 |
Temperature sensor interfaces | 3 |
Number of heating elements | 4 |
Motor controller mode | UART, SPI, STEP/DIR |
Processor frequency | 64Mhz |
PWM count | 7 |
Memory | 512Kb |
USB type | USB-C |
