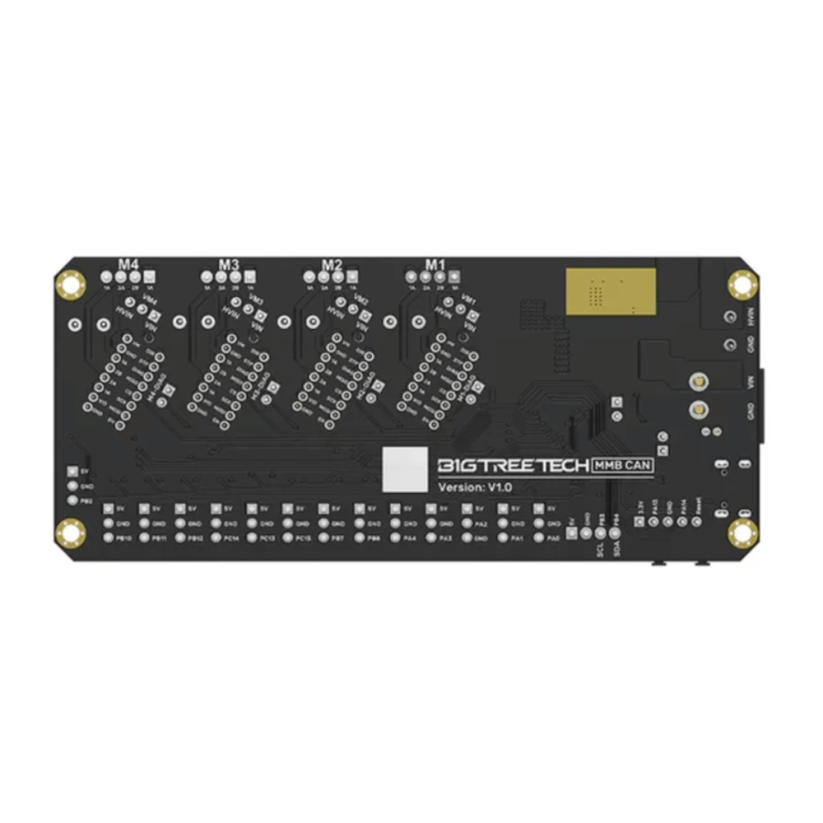

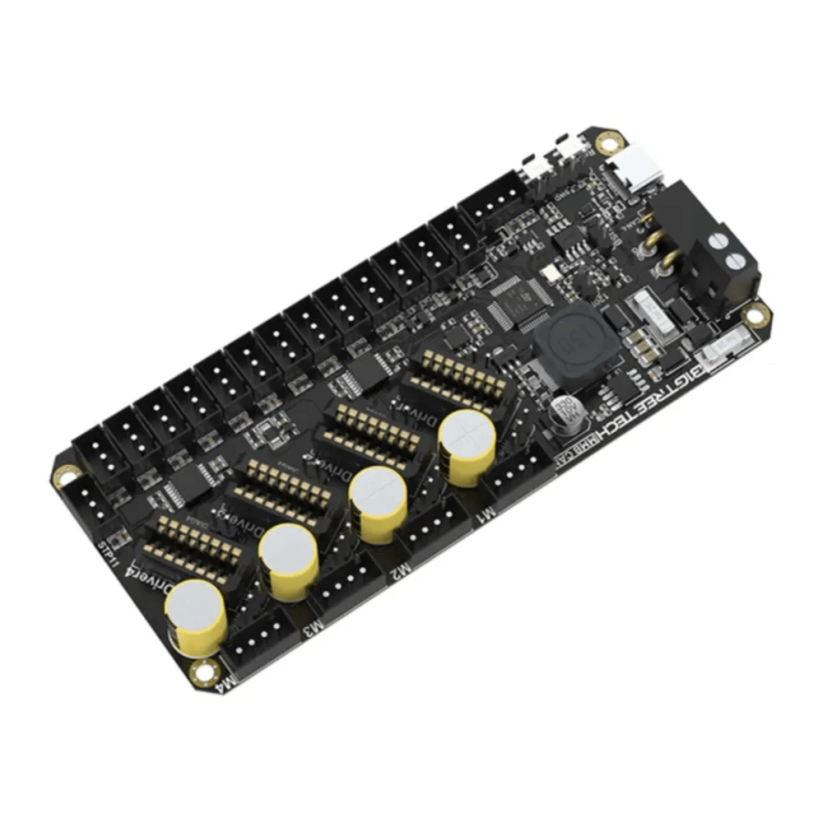

BIGTREETECH MMB CAN V1.0

BIGTREETECH MMB CAN V1.0 is an advanced control board designed for multi-material 3D printing systems, such as the Enraged Rabbit Carrot Feeder (ERCF). This board offers high performance thanks to its 32-bit ARM Cortex-M0+ microprocessor. The CAN bus technology ensures reliable communication and simplified cabling.

Usage of MMB CAN V1.0

The MMB CAN V1.0 board is ideal for 3D printing enthusiasts looking to expand their printing capabilities with multiple materials. It is compatible with Voron 2.4 printers and other systems running Klipper firmware. With various interfaces and support for sensors and LED strips, it is suitable for a wide range of DIY projects.

Recommendations for Use

  • Firmware: To fully utilize the CAN bus functionality, Klipper firmware is required.
  • Sensors: Connect BME680/BME280 for real-time temperature and humidity monitoring or TCRT5000 for precise detection and automatic calibration.
  • LED Strips: Add NeoPixel/WS2812 LED strips for visual indication and aesthetic enhancement.

Package Contents

  • 1 x MMB CAN V1.0
  • 1 x 3m CAN Bus Cable
  • 2 x BTT Stickers
  • 1 x 50cm USB to Type-C Cable
  • 15 x 2.54mm Jumpers

Technical Specifications

Microprocessor ARM Cortex-M0+ STM32G0B1CBT6 64 MHz
Input Voltage DC 12V-24V 9A
Logic Voltage DC 3.3V
Max. Output for MOT 5V 2A, peak 2.5A

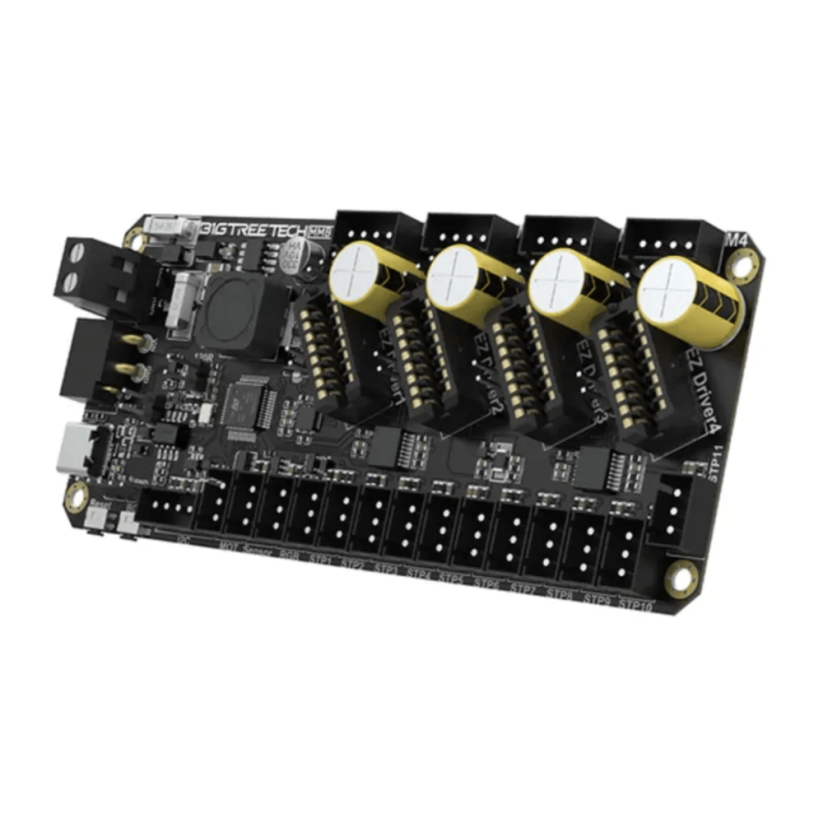

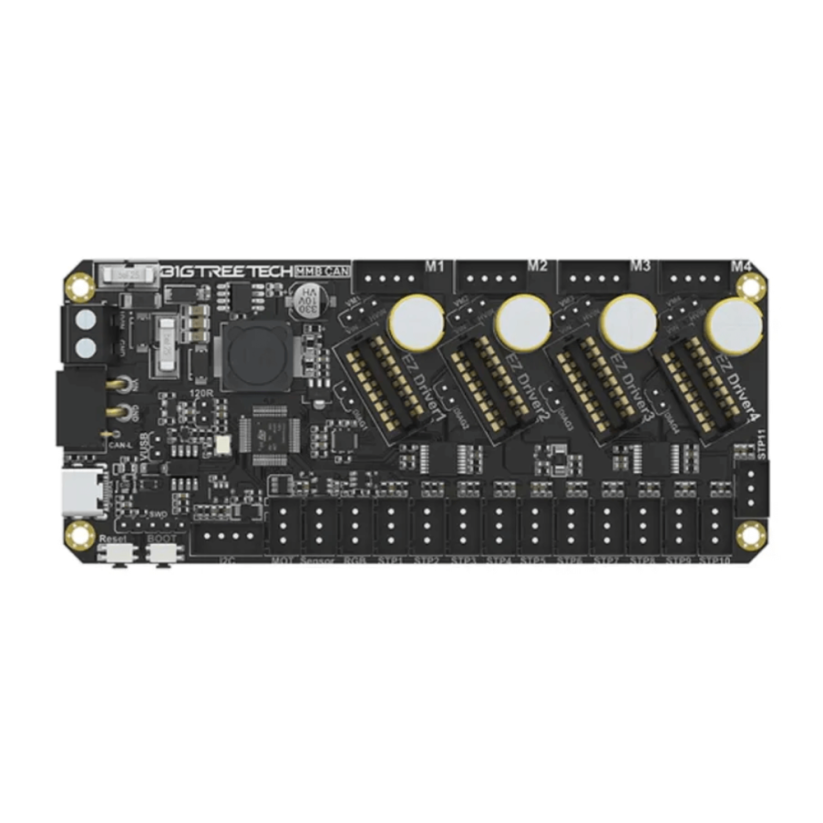

Expansion Interfaces STP1-STP11, I2C, RGB, Sensor (infrared sensor interface), USB, CAN
Motor Driver Support EZ Drive (supports voltage selection, max 60V)
Driver Operating Modes STEP/DIR, UART, SPI
Stepper Motor Interfaces M1, M2, M3, M4
USB Communication Interface USB Type-C
DCDC 5V Max. Output Current 3.6A

Additional Features

  • I2C Interface: For connecting temperature and humidity sensors.
  • Infrared Interface: For connecting infrared sensors.
  • RGB Interface: For adding LED strips.
  • Polarity Protection: Ensures protection of the board when power cables are connected incorrectly.
  • Support for CAN and USB Communication: With optional 120R terminal resistor for CAN and reserved interface for CAN expansion.

BIGTREETECH MMB CAN V1.0 is a highly flexible and reliable control board that offers extensive possibilities for DIY projects and multi-material 3D printing. With advanced features and simple cabling, it is an ideal choice for demanding users seeking a high-quality and robust solution for their printing systems.

Parameters
Manufacturer BigTreeTech
Firmware Klipper
Voron V2.4

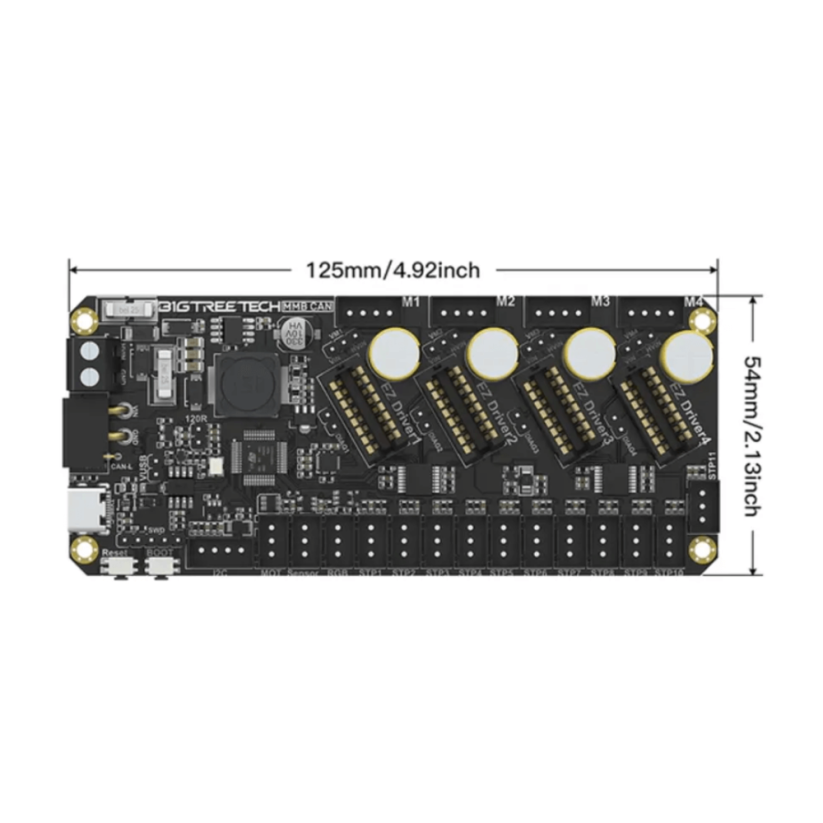

Dimensions 125 mm x 54 mm
Voltage 12V-24V
Microprocessor ARM Cortex-M0+ STM32G0B1CBT6 64 MHz
Motor driver sockets 4
Temperature sensor interfaces I2C (pro připojení senzorů BME680/BME280
CAN BUS Ano
Processor frequency 64 MHz
Motor controller mode STEP/DIR, UART, SPI
