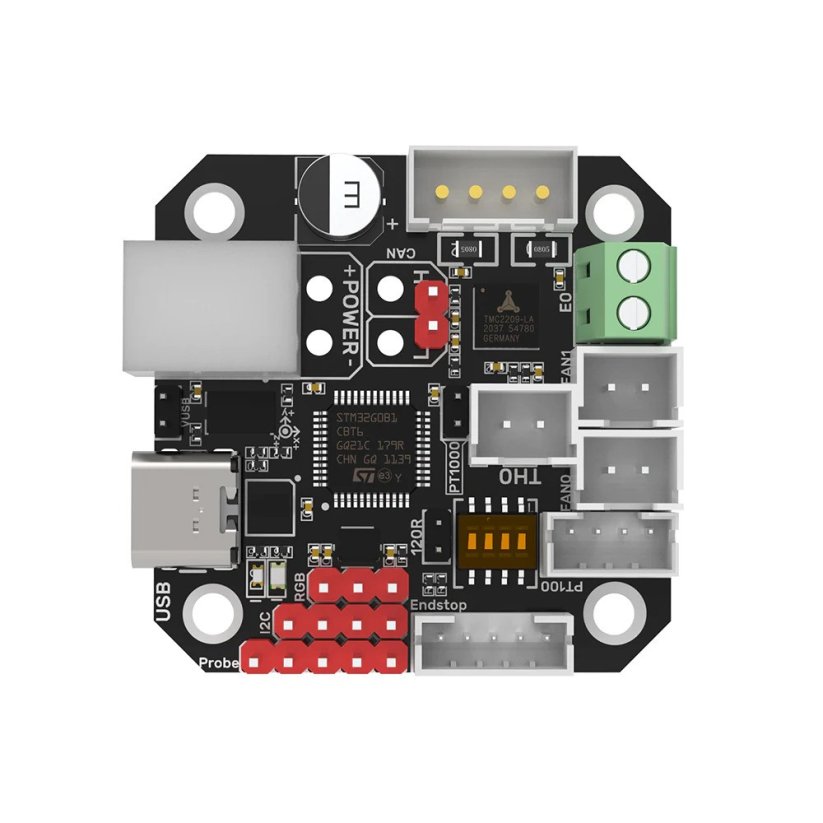

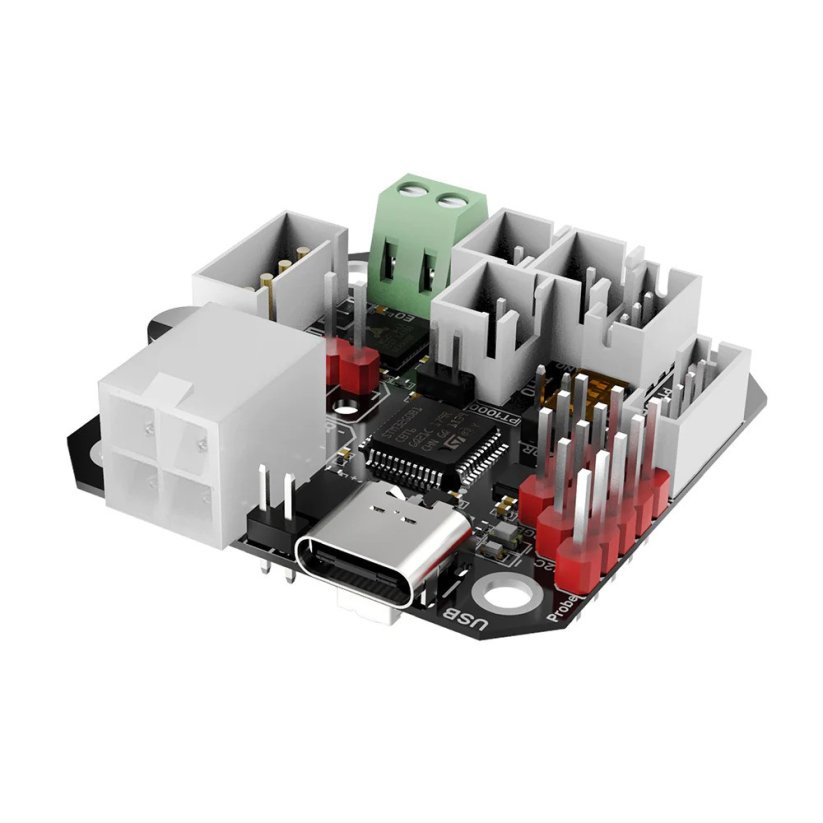

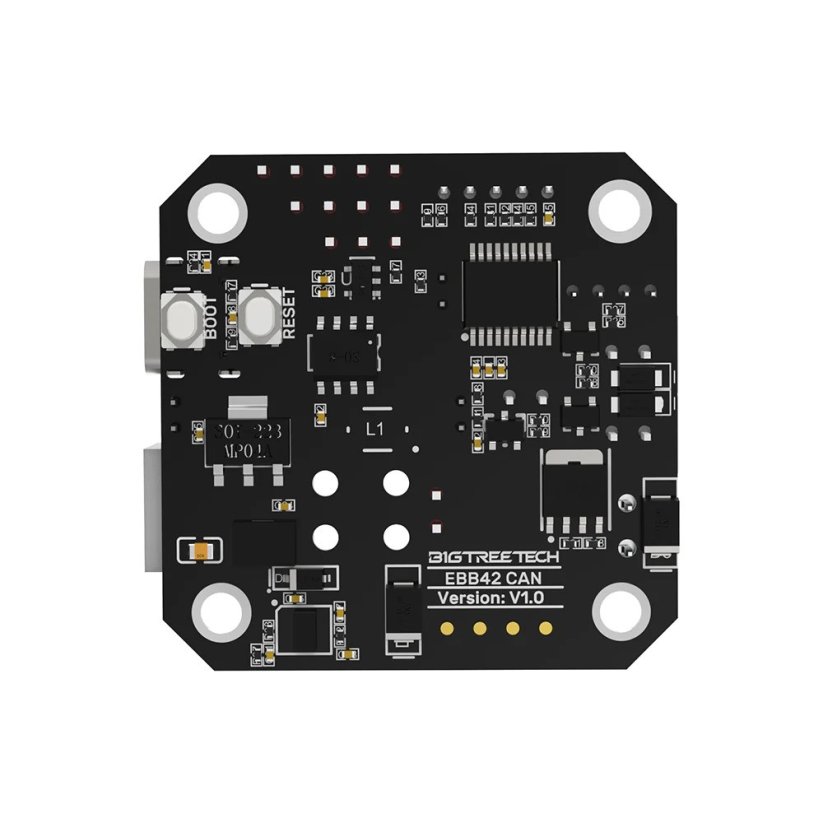

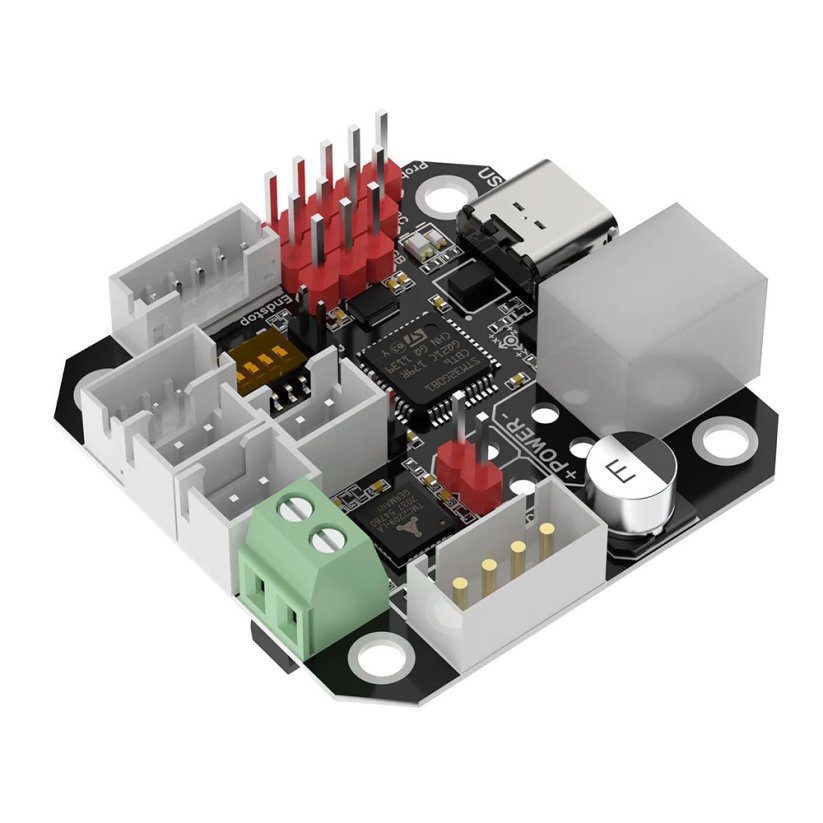

BigTreeTech EBB42 CAN
Extruder Breakout Board for 42mm Extruder
BigTreeTech EBB42 CAN is an expansion board for 3D printers, enabling easy and efficient extruder control. The board is designed for 42mm extruders and comes equipped with a variety of features that simplify and improve its operation.
Main Features
- Integrated TMC2209 driver
- CAN bus communication
- Support for PT100 and PT1000 thermistors
- Accelerometer for fall detection
- LEDs for status indication
- Power disconnect for safety
- This version is without MAX31865
Compatibility
The EBB42 CAN is compatible with most 3D printers using 42mm extruders. It is also compatible with control boards that support the CAN bus protocol.
Installation
Installing the EBB42 CAN is straightforward. The board connects to the 3D printer's control board via a CAN bus cable.
Conclusion
The BigTreeTech EBB42 CAN is an affordable and powerful expansion board, offering a range of features for easy and efficient extruder control. It is suitable for all users looking for a quality and reliable solution to control their 3D printer's extruder.
Specifications
- Dimensions: 30 x 30 x 10 mm
- Weight: 10 g
- MCU: ARM Cortex-M0 STM32F072C8T6
- Stepper driver: TMC2209
- Temperature chip: Max31865
- Thermistor support: PT100, PT1000
- Communication: CAN bus
