Bambu Lab Textured PEI Printing Plate for X1, P1 and A1 Series

Bambu Lab Textured PEI: Texture and Adhesion for Your Projects

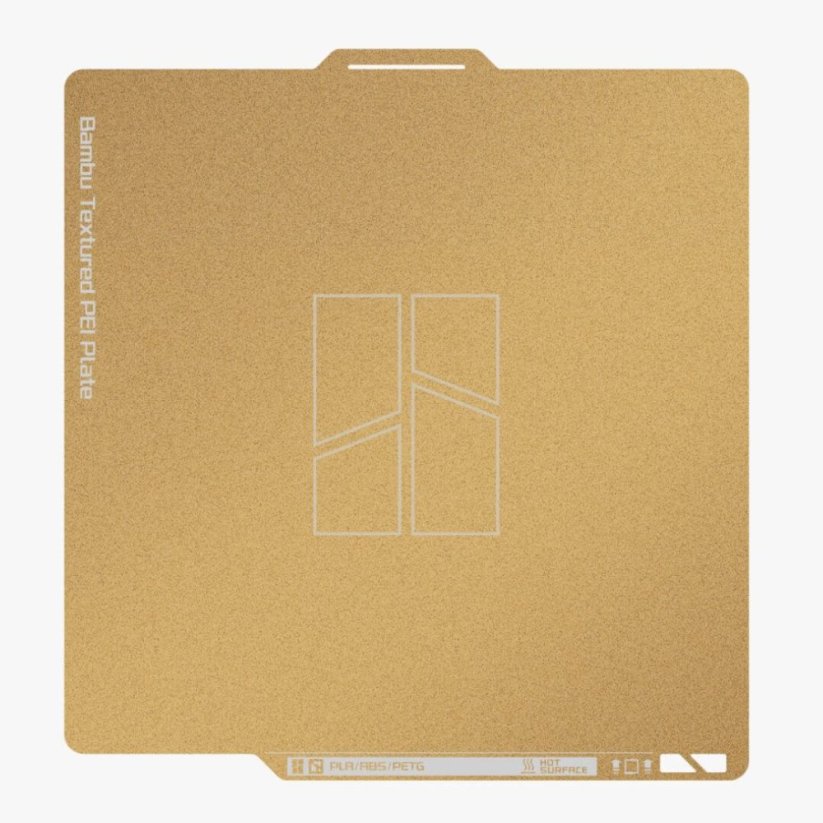

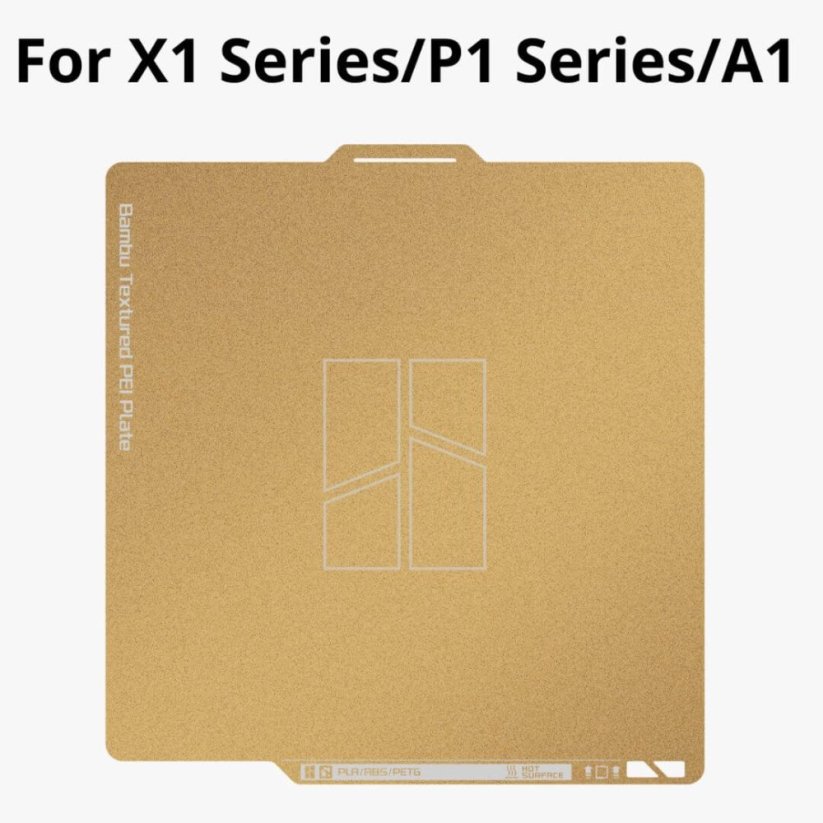

The Bambu Lab Textured PEI print plate is designed for Bambu Lab X1, P1, and A1 series 3D printers. This plate with a textured surface made of PEI (polyetherimide) will give your prints a specific appearance on the bottom layer and ensure good adhesion. Thanks to the powder-coated PEI, the surface is durable and textured.

This plate combines aesthetic and practical properties, providing a textured surface and reliable adhesion.

Main Benefits

• Textured Surface: Prints will have a coarser texture on the first layer.
• Reliable Adhesion: Good adhesion for a wide range of materials, often without glue (glue may be recommended for specific filaments).
• High Durability: PEI material withstands repeated heating and cooling.
• Easy Print Removal: After cooling (below 35 °C), prints can be easily removed, or the plate can be slightly bent.
• Wide Material Compatibility: Supports PLA, PETG, TPU as well as more demanding filaments like ABS, ASA, PC or Nylon.
• Strong Magnetic Adhesion: Stainless steel (0.5 mm) ensures stable attachment.
• Double-Sided Use: Both sides of the plate are textured.

Benefits for Different Users

For hobby users and DIYers:

• Easy Installation and Maintenance: Magnetic system and simple cleaning.
• Attractive Model Appearance: Textured surface for visually interesting prints.
• Reliable Printing: Minimisation of problems thanks to good adhesion.

For businesses and development departments:

• Stable and Repeatable Printing: Consistent results for prototypes and functional parts.
• Compatibility with Many Materials: Flexibility in testing and development.
• High Durability: Long lifespan even with demanding use.

For creative makers and designers:

• Unique Textured Surface: Original appearance for models.
• Support for Complex Shapes: Easier printing of intricate details.
• Inspiration for New Designs: Texture as a basis for creative modifications.

Practical Tips for Use

• Cleaning: Regularly clean the plate with water and a cleaner (e.g., Alphaprint) or detergent. Do not use acetone.
• Temperature: Set the bed temperature according to the recommendation for the given material (see table).
• Adhesive: Use recommended adhesive (e.g., Bambu Lab) for problematic materials (TPU, PC, PA/Nylon).
• Removal: Wait for the plate to cool down.
• Surface Restoration: If adhesion decreases, gently sand the surface (600 grit) and clean it.
• Wear in Calibration Area: This is normal and does not affect printing.
• Updates: Use the latest printer firmware.

Recommended Bed Temperature Settings and Adhesive Use

Technical Specifications

• Surface Material: PEI (Polyetherimide) with powder texture
• Core Material: Spring stainless steel, thickness 0.5 mm
• Maximum Print Bed Temperature (Plate Durability): 180 °C (for operating temperatures, see table above)
• Dimensions: 256 x 256 mm
• Weight: approx. 450 g
• Colour: Gold
• Compatibility: Bambu Lab X1, P1, and A1 series printers
• Magnetic Adhesion: Yes, to the magnetic print platform

Important Notice: The Textured PEI plate is considered a consumable part that wears out over time. The warranty only covers manufacturing defects, not normal wear and tear or cosmetic damage resulting from use, such as scratches, dents, or cracks. Only plates that arrive defective can be claimed under warranty.

The Bambu Lab Textured PEI print plate is a suitable choice for users of Bambu Lab 3D printers who want to achieve a textured surface on their prints while also requiring reliable adhesion and easy handling. Thanks to its durability and compatibility with a range of materials, it is a useful accessory for your printing projects.
